74HCT390 Series

Catalog

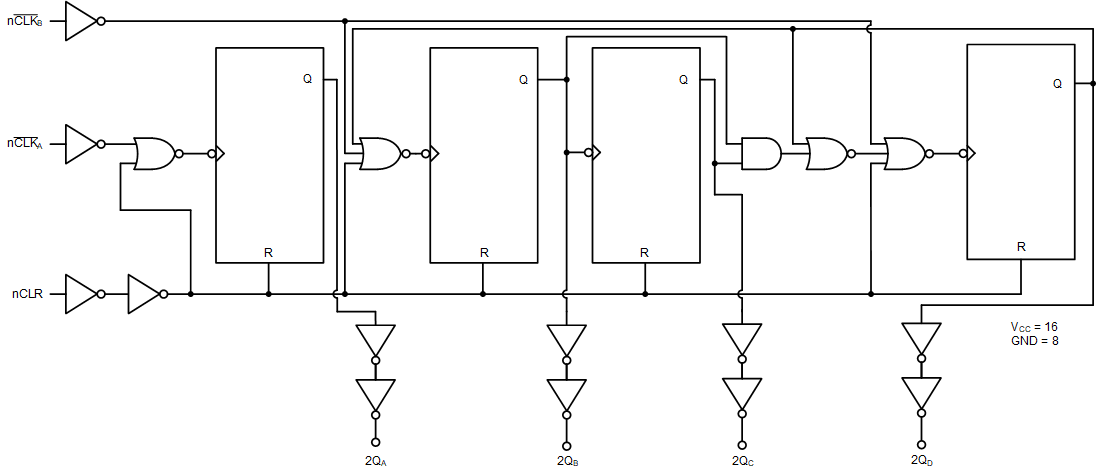

HIGH SPEED CMOS LOGIC DUAL DECADE RIPPLE COUNTER

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Reset	Logic Type	Operating Temperature (Max)	Operating Temperature (Min)	Trigger Type	Direction	Number of Elements	Count Rate	Number of Bits per Element	Package Name	Package Width	Package Length	Mounting Type
Texas Instruments CD74HCT390MT	5.5 V	4.5 V	Asynchronous	Counter Decade	125 °C	-55 °C	Negative Edge	Up	2	27 MHz	4 bits	16-SOIC	3.9 mm	0.154 in	Surface Mount
Texas Instruments CD74HCT390E	5.5 V	4.5 V	Asynchronous	Counter Decade	125 °C	-55 °C	Negative Edge	Up	2	27 MHz	4 bits	16-DIP 16-PDIP	7.62 mm	0.3 in	Through Hole
Texas Instruments CD74HCT390M96	5.5 V	4.5 V	Asynchronous	Counter Decade	125 °C	-55 °C	Negative Edge	Up	2	27 MHz	4 bits	16-SOIC	3.9 mm	0.154 in	Surface Mount
Texas Instruments CD74HCT390EG4	5.5 V	4.5 V	Asynchronous	Counter Decade	125 °C	-55 °C	Negative Edge	Up	2	27 MHz	4 bits	16-DIP 16-PDIP	7.62 mm	0.3 in	Through Hole
Texas Instruments CD74HCT390M	5.5 V	4.5 V	Asynchronous	Counter Decade	125 °C	-55 °C	Negative Edge	Up	2	27 MHz	4 bits	16-SOIC	3.9 mm	0.154 in	Surface Mount
