TPS54336 Series

Catalog

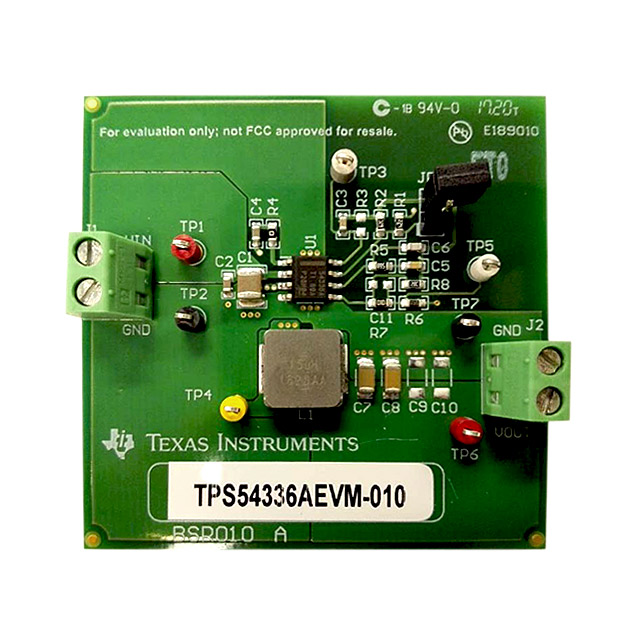

EVAL BOARD FOR TPS54336A

Part	Total Output Count	Output Type	Non-Isolated Output Count	Supplied Contents	Board Type	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Main Purpose	Utilized IC / Part	Frequency - Switching	Current - Output	Contents	Voltage - Output	Regulator Topology	Topology	Synchronous Rectifier	Voltage - Input (Min)	Voltage - Output (Max)	Number of Outputs	Package Name	Function	Output Configuration	Package Width	Package Length	Voltage - Input (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output (Min/Fixed)	Mounting Type	Package / Case
Texas Instruments TPS54336AEVM-010	1	Non-Isolated	1 count	Board(s)	Fully Populated	8 V	28 V	DC/DC Step Down	TPS54336A	340 kHz	3 A	Board	5 VDC	Buck
Texas Instruments TPS54336ADDAR		Adjustable								340 kHz	3 A				Buck	Yes	4.5 V	24 V	1	8-PowerSOIC 8-SO PowerPad	Step-Down	Positive	3.9 mm	0.154 in	28 V	85 °C	-40 °C	0.8 V	Surface Mount
Texas Instruments TPS54336ADDA		Adjustable								340 kHz	3 A				Buck	Yes	4.5 V	24 V	1	8-PowerSOIC 8-SO PowerPad	Step-Down	Positive	3.9 mm	0.154 in	28 V	85 °C	-40 °C	0.8 V	Surface Mount
Texas Instruments TPS54336DDA		Adjustable								340 kHz	3 A				Buck	Yes	4.5 V	25 V	1	8-PowerSOIC 8-SO PowerPad	Step-Down	Positive	3.9 mm	0.154 in	28 V	85 °C	-40 °C	0.8 V	Surface Mount
Texas Instruments TPS54336DDAR		Adjustable								340 kHz	3 A				Buck	Yes	4.5 V	25 V	1	8-PowerSOIC 8-SO PowerPad	Step-Down	Positive	3.9 mm	0.154 in	28 V	85 °C	-40 °C	0.8 V	Surface Mount
Texas Instruments TPS54336ADRCR		Adjustable								340 kHz	3 A				Buck	Yes	4.5 V	24 V	1	10-VSON	Step-Down	Positive	3 mm	3 mm	28 V	85 °C	-40 °C	0.8 V	Surface Mount	10-VFDFN Exposed Pad
Texas Instruments TPS54336ADRCT		Adjustable								340 kHz	3 A				Buck	Yes	4.5 V	24 V	1	10-VSON	Step-Down	Positive	3 mm	3 mm	28 V	85 °C	-40 °C	0.8 V	Surface Mount	10-VFDFN Exposed Pad
