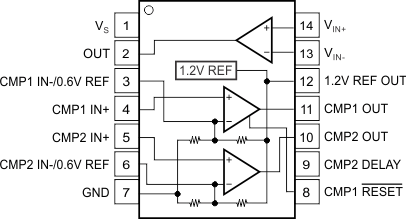

INA205 Series

Catalog

-16 TO 80V, 500KHZ CURRENT SENSE AMPLIFIER W/ DUAL COMPARATORS

Part	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Function	Package Name	Accuracy	Current - Output	Sensing Method	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Package Length	Package Width
Texas Instruments INA205AIDGSR	-16 V	80 V	Current Monitor	10-MSOP 10-TFSOP 10-VSSOP	3.5 %	1 mA	High-Side	Surface Mount	125 °C	-40 °C	0.118 in	3 mm
Texas Instruments INA205AIPWR	-16 V	80 V	Current Monitor	14-TSSOP	3.5 %	1 mA	High-Side	Surface Mount	125 °C	-40 °C	0.173 in	4.4 mm
Texas Instruments INA205AIDR	-16 V	80 V	Current Monitor	14-SOIC	3.5 %	1 mA	High-Side	Surface Mount	125 °C	-40 °C	0.154 in	3.9 mm
Texas Instruments INA205AIDGST	-16 V	80 V	Current Monitor	10-MSOP 10-TFSOP 10-VSSOP	3.5 %	1 mA	High-Side	Surface Mount	125 °C	-40 °C	0.118 in	3 mm
Texas Instruments INA205AIPW	-16 V	80 V	Current Monitor	14-TSSOP	3.5 %	1 mA	High-Side	Surface Mount	125 °C	-40 °C	0.173 in	4.4 mm
Texas Instruments INA205AID	-16 V	80 V	Current Monitor	14-SOIC	3.5 %	1 mA	High-Side	Surface Mount	125 °C	-40 °C	0.154 in	3.9 mm
