LMH6583 Series
Manufacturer: Texas Instruments
Beta
⌘K
5-V, CROSSPOINT/EXCHANGE, 16-INPUT 8-OUTPUT, ANALOG SWITCH WITH A GAIN OF 2
| Part | -3db Bandwidth | Multiplexer Inputs | Demultiplexer Outputs | Applications | Operating Temperature (Max) | Operating Temperature (Min) | Number of Channels | Voltage - Supply, Dual (Maximum) | Voltage - Supply, Dual (Minimum) | Voltage - Supply, Dual (Nominal) | Mounting Type | Package Width | Package Name | Package Length | Package / Case | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

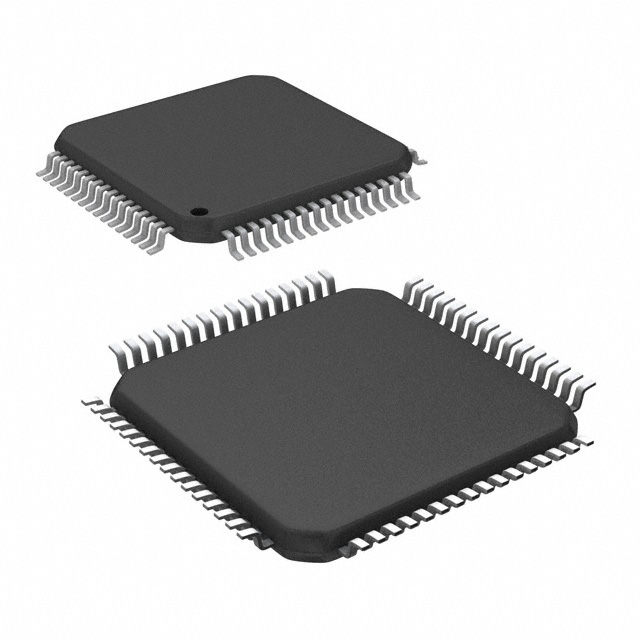

 Texas Instruments | 550 MHz | 16 | 8 | Video | 85 °C | -40 °C | 1 | 5.5 V | -3 V | 3 V | Surface Mount | 10 mm | 64-TQFP-EP | 10 mm | 64-TQFP Exposed Pad | Buffered |
