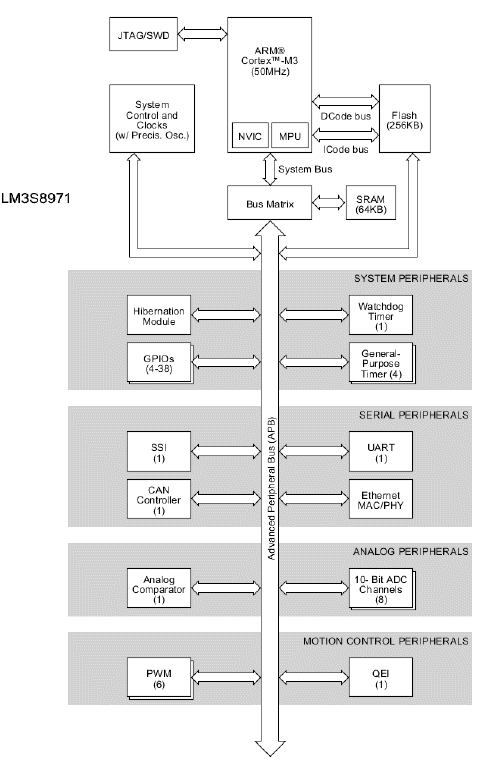

LM3S8971 Series

Catalog

IC MCU 32BIT 256KB FLASH 108BGA

Part	Program Memory Width	Program Memory Depth	Program Memory Size	Peripherals	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	A/D Channels	A/D Resolution (bits)	Mounting Type	Package / Case	Program Memory Type	Package Length	Package Name	Package Width	Operating Temperature (Max)	Operating Temperature (Min)	Connectivity	Speed	Oscillator Type	Core Processor	Core Size (Bit Width)	Number of I/O	RAM Size Depth	RAM Size Width	Core Configuration
Texas Instruments LM3S8971-IBZ50-A2T	8 bit	256 K	256 KB	Brown-out Detect POR PWM Reset WDT	2.25 V	2.75 V	8 count	10 bit	Surface Mount	108-LFBGA	FLASH	10 mm	108-BGA	10 mm	85 °C	-40 °C	CANbus Ethernet IrDA Microwire QEI SPI SSI UART USART	50 MHz	Internal	ARM® Cortex®-M3	32 Bit	38	64 K	8 bit	Single-Core
Texas Instruments LM3S8971-IBZ50-A2	8 bit	256 K	256 KB	Brown-out Detect POR PWM Reset WDT	2.25 V	2.75 V	8 count	10 bit	Surface Mount	108-LFBGA	FLASH	10 mm	108-BGA	10 mm	85 °C	-40 °C	CANbus Ethernet IrDA Microwire QEI SPI SSI UART USART	50 MHz	Internal	ARM® Cortex®-M3	32 Bit	38	64 K	8 bit	Single-Core
Texas Instruments LM3S8971-IQC50-A2	8 bit	256 K	256 KB	Brown-out Detect POR PWM Reset WDT	2.25 V	2.75 V	8 count	10 bit	Surface Mount	100-LQFP	FLASH	14 mm	100-LQFP	14 mm	85 °C	-40 °C	CANbus Ethernet IrDA Microwire QEI SPI SSI UART USART	50 MHz	Internal	ARM® Cortex®-M3	32 Bit	38	64 K	8 bit
Texas Instruments LM3S8971-EQC50-A2T	8 bit	256 K	256 KB	Brown-out Detect POR PWM Reset WDT	2.25 V	2.75 V	8 count	10 bit	Surface Mount	100-LQFP	FLASH	14 mm	100-LQFP	14 mm	105 °C	-40 °C	CANbus Ethernet IrDA Microwire QEI SPI SSI UART USART	50 MHz	Internal	ARM® Cortex®-M3	32 Bit	38	64 K	8 bit	Single-Core
Texas Instruments LM3S8971-EQC50-A2	8 bit	256 K	256 KB	Brown-out Detect POR PWM Reset WDT	2.25 V	2.75 V	8 count	10 bit	Surface Mount	100-LQFP	FLASH	14 mm	100-LQFP	14 mm	105 °C	-40 °C	CANbus Ethernet IrDA Microwire QEI SPI SSI UART USART	50 MHz	Internal	ARM® Cortex®-M3	32 Bit	38	64 K	8 bit	Single-Core
