DAC43701 Series

8-bit 1-channel voltage-output smart DAC with Hi-Z, EEPROM, waveform generator, comparator, GPIO

Catalog

8-bit 1-channel voltage-output smart DAC with Hi-Z, EEPROM, waveform generator, comparator, GPIO

Part	Number of D/A Converters	Package / Case	Settling Time	Number of Bits	Architecture	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Output Type	INL (LSB) Tolerance	DNL (LSB) Tolerance	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Data Interface	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Reference Type	Mounting Type	Differential Output
Texas Instruments DAC43701DSGT	1 count	8-WFDFN Exposed Pad	12 µs	8 bits	String DAC	125 °C	-40 °C	2 mm	8-WSON	2 mm	Voltage - Buffered	1 LSB	1 LSB	5.5 V	1.71 V	I2C	1.71 V	5.5 V	Internal Supply	Surface Mount	No
Texas Instruments DAC43701DSGR	1 count	8-WFDFN Exposed Pad	12 µs	8 bits	String DAC	125 °C	-40 °C	2 mm	8-WSON	2 mm	Voltage - Buffered	1 LSB	1 LSB	5.5 V	1.71 V	I2C	1.71 V	5.5 V	Internal Supply	Surface Mount	No

Catalog

8-bit 1-channel voltage-output smart DAC with Hi-Z, EEPROM, waveform generator, comparator, GPIO

Description

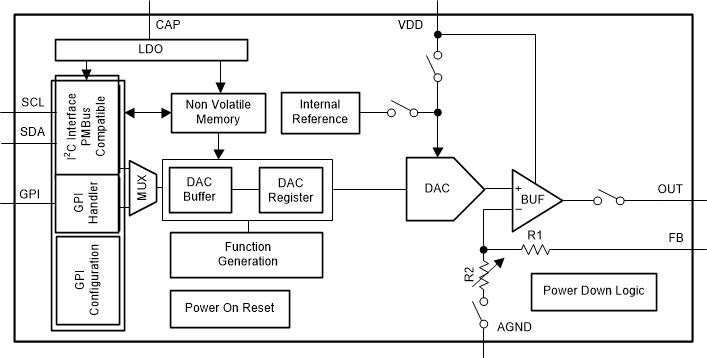

The 10-bit DAC53701 and 8-bit DAC43701 (DACx3701) are a pin-compatible family of buffered voltage-output smart digital-to-analog converters (DACs). These devices consume very low power, and are available in a tiny 8-pin WSON package. The feature set combined with the tiny package and low power make the DACx3701 an excellent choice for applications such as appliance door fade-in fade-out, processorless LED dimming with PWM input, general-purpose bias point generation, voltage margining and scaling, PWM signal generation, and medical alarm tone generation. These devices have nonvolatile memory (NVM), an internal reference, a PMBus-compatible I2C interface, and a general-purpose input. The DACx3701 operates with either an internal reference or with the power supply as a reference, and provides a full-scale output of 1.8 V to 5.5 V. The DACx3701 are smart DAC devices because of their advanced integrated features. With force-sense output, GPI based function trigger, medical alarm, PWM output, and NVM capabilities, smart DACs enable system performance and control without the use of software. The 10-bit DAC53701 and 8-bit DAC43701 (DACx3701) are a pin-compatible family of buffered voltage-output smart digital-to-analog converters (DACs). These devices consume very low power, and are available in a tiny 8-pin WSON package. The feature set combined with the tiny package and low power make the DACx3701 an excellent choice for applications such as appliance door fade-in fade-out, processorless LED dimming with PWM input, general-purpose bias point generation, voltage margining and scaling, PWM signal generation, and medical alarm tone generation. These devices have nonvolatile memory (NVM), an internal reference, a PMBus-compatible I2C interface, and a general-purpose input. The DACx3701 operates with either an internal reference or with the power supply as a reference, and provides a full-scale output of 1.8 V to 5.5 V. The DACx3701 are smart DAC devices because of their advanced integrated features. With force-sense output, GPI based function trigger, medical alarm, PWM output, and NVM capabilities, smart DACs enable system performance and control without the use of software.
