DRV8343 Series
Manufacturer: Texas Instruments
Beta
⌘K

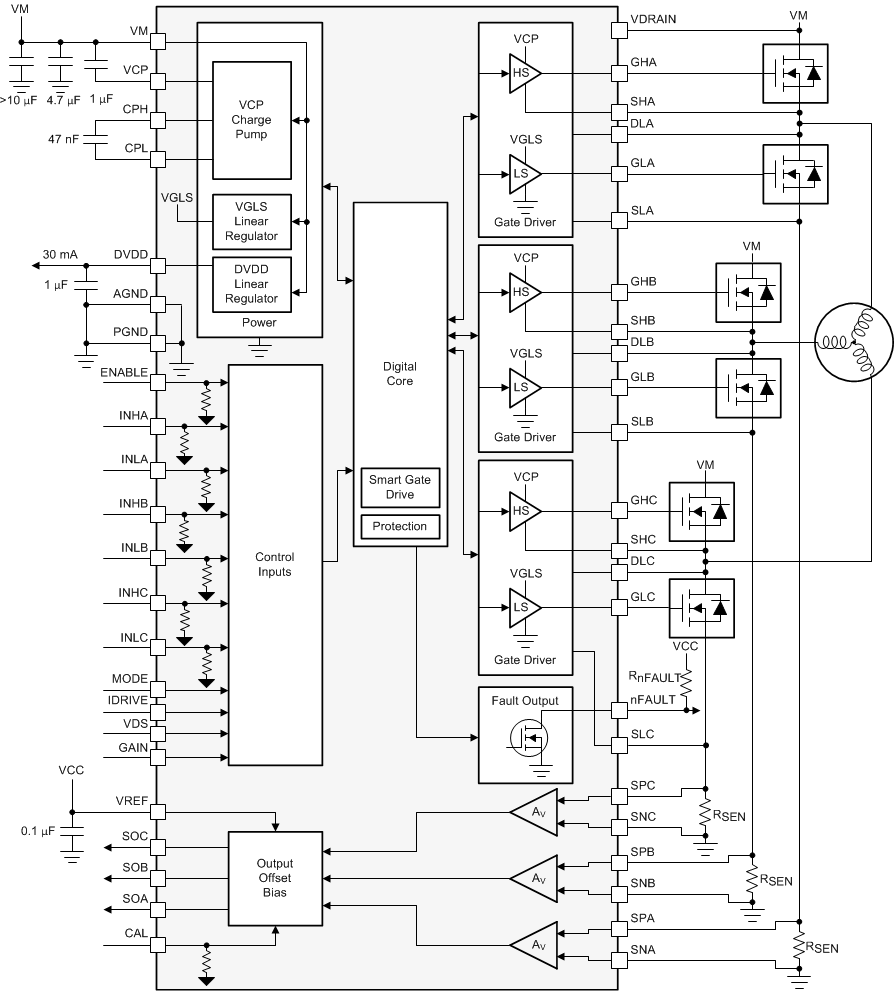

AUTOMOTIVE 12-V TO 24-V BATTERY 3-PHASE SMART GATE DRIVER WITH CURRENT SHUNT AMPLIFIERS
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Function | Voltage - Load (Max) | Voltage - Load (Min) | Grade | Qualification | Mounting Type | Technology | Motor Type - AC, DC | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Package Length | Package Name | Package Width | Package / Case | Interface | Output Configuration Count | Output Configuration | Current - Output | Supplied Contents | Utilized IC / Part | Secondary Attributes | Type | Contents | Primary Attributes | Embedded Bit Width | Embedded | Motor Type - Stepper |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 125 °C | -40 °C | Controller - Commutation Direction Management | 60 V | 5.5 V | Automotive | AEC-Q100 | Surface Mount | Power MOSFET | Brushless DC (BLDC) | 5.5 V | 3 V | 7 mm | 48-HTQFP | 7 mm | 48-PowerTQFP | SPI | 3 | Pre-Driver - Half Bridge Pre-Driver - Half Bridge (3) | 25 mA | |||||||||
 Texas Instruments | Driver Motor Controller | Board(s) | DRV8343S-Q1 | Graphical User Interface (GUI) | Power Management | Board | Motors (BLDC) | 16 bit | MCU Yes | ||||||||||||||||||||
 Texas Instruments | Driver Motor Controller | DRV8343H-Q1 | Graphical User Interface (GUI) | Power Management | Board | Motors (BLDC) | 16 bit | MCU Yes | |||||||||||||||||||||
 Texas Instruments | 125 °C | -40 °C | Controller - Commutation Direction Management | 60 V | 5.5 V | Automotive | AEC-Q100 | Surface Mount | NMOS | Brushless DC (BLDC) | 60 V | 5.5 V | 7 mm | 48-HTQFP | 7 mm | 48-PowerTQFP | Hardwired (HW) | 3 | Pre-Driver - Half Bridge Pre-Driver - Half Bridge (3) | 10 mA | Multiphase |
