LMZ31704 Series

Catalog

2.95V TO 17V, 4A STEP-DOWN POWER MODULE WITH CURRENT SHARING IN 10X10X4.3MM QFN PACKAGE

Part	Package / Case	Voltage - Output 1 (Max)	Voltage - Output 1 (Min)	Package Name	Package Width	Package Length	Voltage - Input (Max)	Mounting Type	Voltage - Input (Min)	Type	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Operating Temperature (Min)	Operating Temperature (Max)	Number of Outputs	Current - Output (Max)	Features	Control Features	Efficiency	Applications	Supplied Contents	Total Output Count	Output Type	Non-Isolated Output Count	Board Type	Voltage - Output	Voltage - Output	Voltage - Output (7)	Voltage - Output (1)	Voltage - Output (4)	Voltage - Output (2)	Voltage - Output (6)	Voltage - Output (3)	Voltage - Output (5)	Current - Output	Utilized IC / Part	Contents	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Regulator Topology	Main Purpose
Texas Instruments LMZ31704RVQR	42-BQFN Module	5.5 V	0.6 V	42-B3QFN	10 mm	10 mm	17 V	Surface Mount	2.95 V	Non-Isolated PoL Module	0.36 in	0.11 in	0.44 in	-40 °C	85 °C	1	4 A	OCP OTP UVLO	Active High Enable	95 %	ITE (Commercial)

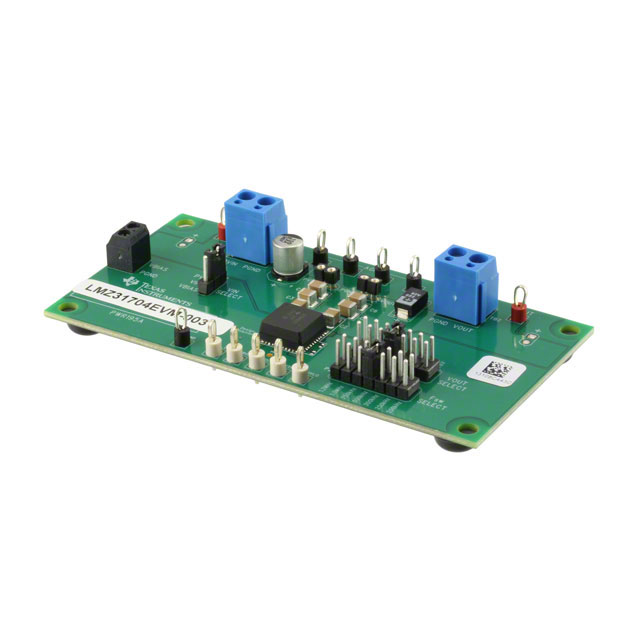

Texas Instruments LMZ31704EVM-003																						Board(s)	1	Non-Isolated	1 count	Fully Populated	0.6V 0.9V 1.2V 1.8V 2.5V 3.3V 5V	0.6 V 0.9 V 1.2 V 1.8 V 2.5 V 3.3 V 5 VDC	5 V	0.6 V	1.8 V	0.9 V	3.3 V	1.2 V	2.5 V	4 A	LMZ31704	Board	2.95 V	17 V	Buck	DC/DC Step Down
Texas Instruments LMZ31704RVQT	42-BQFN Module	5.5 V	0.6 V	42-B3QFN	10 mm	10 mm	17 V	Surface Mount	2.95 V	Non-Isolated PoL Module	0.4 in	0.17 in	0.4 in	-40 °C	85 °C	1	4 A	OCP OTP UVLO	Active High Enable	95 %	ITE (Commercial)
