ADS8881 Series

Catalog

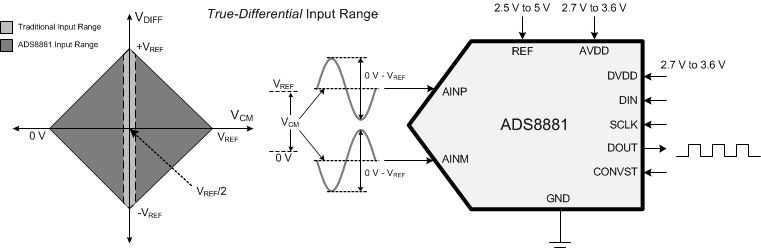

18-BIT, 1-MSPS, 1-CH SAR ADC WITH TRUE-DIFFERENTIAL INPUT, SPI INTERFACE AND DAISY-CHAIN

Part	Number of Bits	Architecture	Reference Type	Package / Case	Configuration	Ratio - ADC	Ratio - S/H	Mounting Type	Data Interface	Number of A/D Converters	Input Type	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Package Width	Package Name	Package Length	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Sampling Rate (Per Second)	Number of Inputs	Supplied Contents	Power (Typ)	Utilized IC / Part	Contents	Input Range
Texas Instruments ADS8881IDRCR	18 bits	SAR	External	10-VFDFN Exposed Pad	S/H-ADC	1	1	Surface Mount	SPI	1 count	Differential	2.7 V	3.6 V	-40 °C	85 °C	3 mm	10-VSON	3 mm	2.7 V	3.6 V	1 MHz	1
Texas Instruments ADS8881EVMV2-PDK	18 bits								Serial SPI	1 count											1 MHz		Board(s)	5.5 mW	ADS8881	Board	±VREF
Texas Instruments ADS8881IDGS	18 bits	SAR	External		S/H-ADC	1	1	Surface Mount	SPI	1 count	Differential	2.7 V	3.6 V	-40 °C	85 °C	3 mm	10-MSOP 10-TFSOP 10-VSSOP	0.118 in	2.7 V	3.6 V	1 MHz	1
Texas Instruments ADS8881CDGSR	18 bits	SAR	External		S/H-ADC	1	1	Surface Mount	SPI	1 count	Differential	2.7 V	3.6 V	0 °C	70 °C	3 mm	10-MSOP 10-TFSOP 10-VSSOP	0.118 in	2.7 V	3.6 V	1 MHz	1
Texas Instruments ADS8881CDRCR	18 bits	SAR	External	10-VFDFN Exposed Pad	S/H-ADC	1	1	Surface Mount	SPI	1 count	Differential	2.7 V	3.6 V	0 °C	70 °C	3 mm	10-VSON	3 mm	2.7 V	3.6 V	1 MHz	1
Texas Instruments ADS8881CDGS	18 bits	SAR	External		S/H-ADC	1	1	Surface Mount	SPI	1 count	Differential	2.7 V	3.6 V	0 °C	70 °C	3 mm	10-MSOP 10-TFSOP 10-VSSOP	0.118 in	2.7 V	3.6 V	1 MHz	1
Texas Instruments ADS8881CDRCT	18 bits			10-VFDFN Exposed Pad				Surface Mount								3 mm	10-VSON	3 mm
Texas Instruments ADS8881IDGSR	18 bits	SAR	External		S/H-ADC	1	1	Surface Mount	SPI	1 count	Differential	2.7 V	3.6 V	-40 °C	85 °C	3 mm	10-MSOP 10-TFSOP 10-VSSOP	0.118 in	2.7 V	3.6 V	1 MHz	1
Texas Instruments ADS8881IDRCT	18 bits			10-VFDFN Exposed Pad				Surface Mount								3 mm	10-VSON	3 mm
Texas Instruments ADS8881EVM-PDK	18 bits								SPI	1 count											1 MHz		Board(s) Cable(s) Power Supply	5.5 mW	ADS8881	Board Cable Power Supply	±VREF
