MSP430F233 Series

Catalog

16 MHZ MCU WITH 8KB FLASH, 1KB SRAM, 12-BIT ADC, COMPARATOR, I2C/SPI/UART, HW MULTIPLIER

Part	Mounting Type	Core Size (Bit Width)	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Package / Case	Oscillator Type	Number of I/O	Speed	Program Memory Size	Program Memory Additional Size	Program Memory Depth	Program Memory Width	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Connectivity	Program Memory Type	RAM Size Depth	RAM Size Width	A/D Resolution (bits)	A/D Channels	Core Processor	Peripherals

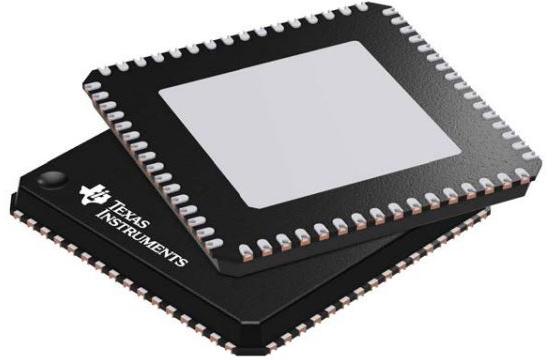

Texas Instruments MSP430F233TRGCT	Surface Mount	16 Bit	105 °C	-40 °C	9 mm	64-VQFN	9 mm	64-VFQFN Exposed Pad	Internal	48	16 MHz	8 KB	256 B	8 K	8 bit	3.6 V	1.8 V	I2C IrDA LINbus SCI SPI UART USART	FLASH	1 K	8 bit	12 bit	8 count	MSP430 CPU16	Brown-out Detect POR PWM Reset WDT
Texas Instruments MSP430F233TRGCR	Surface Mount	16 Bit	105 °C	-40 °C	9 mm	64-VQFN	9 mm	64-VFQFN Exposed Pad	Internal	48	16 MHz	8 KB	256 B	8 K	8 bit	3.6 V	1.8 V	I2C IrDA LINbus SCI SPI UART USART	FLASH	1 K	8 bit	12 bit	8 count	MSP430 CPU16	Brown-out Detect POR PWM Reset WDT
Texas Instruments MSP430F233TPMR	Surface Mount	16 Bit	105 °C	-40 °C	10 mm	64-LQFP	10 mm	64-LQFP	Internal	48	16 MHz	8 KB	256 B	8 K	8 bit	3.6 V	1.8 V	I2C IrDA LINbus SCI SPI UART USART	FLASH	1 K	8 bit	12 bit	8 count	MSP430 CPU16	Brown-out Detect POR PWM Reset WDT
Texas Instruments MSP430F233TPM	Surface Mount	16 Bit	105 °C	-40 °C	10 mm	64-LQFP	10 mm	64-LQFP	Internal	48	16 MHz	8 KB	256 B	8 K	8 bit	3.6 V	1.8 V	I2C IrDA LINbus SCI SPI UART USART	FLASH	1 K	8 bit	12 bit	8 count	MSP430 CPU16	Brown-out Detect POR PWM Reset WDT
