LMZ12010 Series
Manufacturer: Texas Instruments
Beta
⌘K

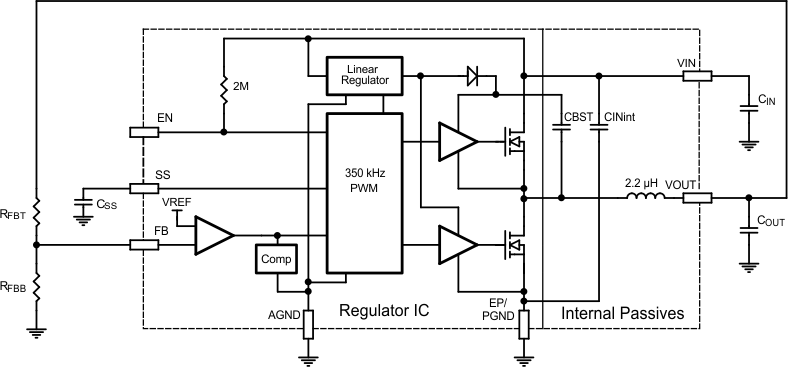

10A SIMPLE SWITCHER® POWER MODULE WITH 20V MAXIMUM INPUT VOLTAGE
| Part | Efficiency | Type | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Input (Min) | Number of Outputs | Voltage - Input (Max) | Voltage - Output 1 (Min) | Voltage - Output 1 (Max) | Features | Size / Dimension Width | Size / Dimension Length | Size / Dimension Height | Package / Case | Applications | Current - Output (Max) | Mounting Type | Board Type | Supplied Contents | Total Output Count | Output Type | Non-Isolated Output Count | Frequency - Switching | Voltage - Output (4) | Voltage - Output (3) | Voltage - Output (1) | Voltage - Output (2) | Contents | Current - Output | Main Purpose | Regulator Topology | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 92 % | Non-Isolated PoL Module | 125 °C | -40 °C | 6 V | 1 | 20 V | 800 mV | 6 V | UVLO | 0.59 in | 0.59 in | 0.23 in | Power Module TO-PMOD-11 | ITE (Commercial) | 10 A | Surface Mount | |||||||||||||||||
Texas Instruments | 92 % | Non-Isolated PoL Module | 125 °C | -40 °C | 6 V | 1 | 20 V | 800 mV | 6 V | SCP UVLO | 0.59 in | 0.59 in | 0.23 in | Power Module TO-PMOD-11 | ITE (Commercial) | 10 A | Surface Mount | |||||||||||||||||

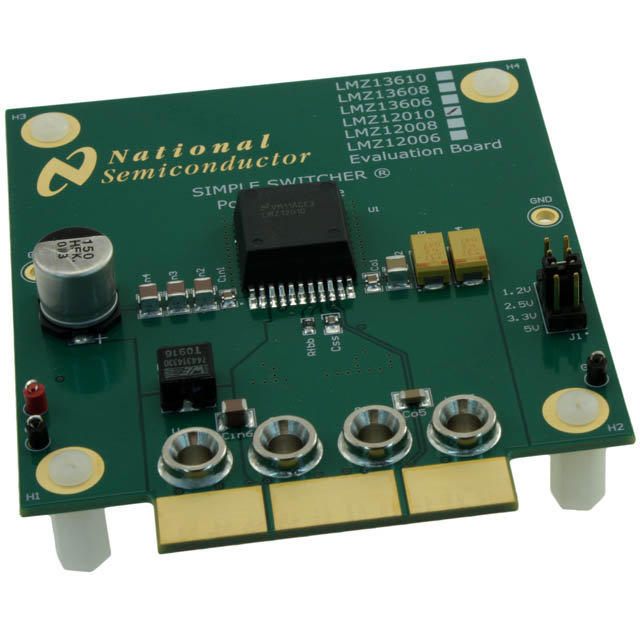

 Texas Instruments | Fully Populated | Board(s) | 1 | Non-Isolated | 1 count | 350 kHz | 5 V | 3.3 V | 1.2 V | 2.5 V | Board | 10 A | DC/DC Step Down | Buck | 6 V | 20 V | LMZ12010 |
