TLV743P Series

Catalog

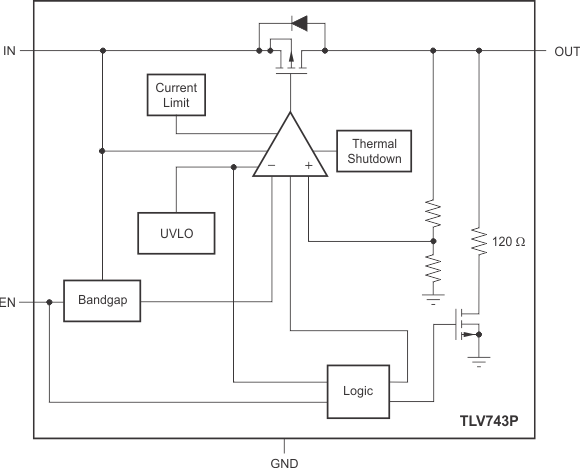

300MA LOW-IQ LOW-DROPOUT (LDO) VOLTAGE REGULATOR WITH ENABLE

Part	Control Features	Mounting Type	Current - Output	Operating Temperature (Max)	Operating Temperature (Min)	Number of Regulators	Package Length	Package Name	Package Width	Current - Quiescent (Iq)	Voltage - Input (Max)	Voltage Dropout (Max)	Protection Features	Package / Case	Voltage - Output (Min/Fixed)	Output Type	Output Configuration	PSRR (Minimum)	PSRR (Maximum)
Texas Instruments TLV74315PDQNR	Enable	Surface Mount	300 mA	125 °C	-40 °C	1	1 mm	4-X2SON	1 mm	60 µA	5.5 V	0.4 V	Current Limit Thermal Shutdown UVLO	4-XDFN Exposed Pad	1.5 V	Fixed	Positive	28 dB	68 dB
Texas Instruments TLV74312PDQNR	Enable	Surface Mount	300 mA	125 °C	-40 °C	1	1 mm	4-X2SON	1 mm	60 µA	5.5 V	0.45 V	Current Limit Thermal Shutdown UVLO	4-XDFN Exposed Pad	1.2 V	Fixed	Positive	28 dB	68 dB
Texas Instruments TLV74311PDQNR	Enable	Surface Mount	300 mA	125 °C	-40 °C	1	1 mm	4-X2SON	1 mm	60 µA	5.5 V	0.48 V	Current Limit Thermal Shutdown UVLO	4-XDFN Exposed Pad	1.1 V	Fixed	Positive	28 dB	68 dB
Texas Instruments TLV74312PDQNR3	Current Limit Enable	Surface Mount	300 mA	125 °C	-40 °C	1	1 mm	4-X2SON	1 mm	60 µA	5.5 V	0.45 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	4-XDFN Exposed Pad	1.2 V	Fixed	Positive	28 dB	68 dB
Texas Instruments TLV74311PDBVR	Enable	Surface Mount	300 mA	125 °C	-40 °C	1		SOT-23-5		60 µA	5.5 V	0.48 V	Current Limit Thermal Shutdown UVLO		1.1 V	Fixed	Positive	28 dB	68 dB
Texas Instruments TLV74310PDBVR	Enable	Surface Mount	300 mA	125 °C	-40 °C	1		SOT-23-5		60 µA	5.5 V		Current Limit Thermal Shutdown UVLO		1 V	Fixed	Positive	28 dB	68 dB
Texas Instruments TLV74312PDBVR	Enable	Surface Mount	300 mA	125 °C	-40 °C	1		SOT-23-5		60 µA	5.5 V	0.45 V	Current Limit Thermal Shutdown UVLO		1.2 V	Fixed	Positive	28 dB	68 dB
Texas Instruments TLV74310PDQNR	Enable	Surface Mount	300 mA	125 °C	-40 °C	1	1 mm	4-X2SON	1 mm	60 µA	5.5 V		Current Limit Thermal Shutdown UVLO	4-XDFN Exposed Pad	1 V	Fixed	Positive	28 dB	68 dB
Texas Instruments TLV743105PDBVR	Enable	Surface Mount	300 mA	125 °C	-40 °C	1		SOT-23-5		60 µA	5.5 V		Current Limit Thermal Shutdown UVLO		1.05 V	Fixed	Positive
Texas Instruments TLV74315PDBVR	Enable	Surface Mount	300 mA	125 °C	-40 °C	1		SOT-23-5		60 µA	5.5 V	0.4 V	Current Limit Thermal Shutdown UVLO		1.5 V	Fixed	Positive	28 dB	68 dB
