LMK03002 Series
Manufacturer: Texas Instruments
Beta
⌘K
1566 TO 1724-MHZ, 800-FS RMS JITTER, PRECISION CLOCK CONDITIONER WITH INTEGRATED VCO
| Part | Output | Operating Temperature (Min) | Operating Temperature (Max) | Type | Package Width | Package Name | Package Length | Differential Input | Differential Output | Input Ratio | Output Ratio | Multiplier | Divider | Input | Number of Circuits | Package / Case | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | PLL | Mounting Type | Frequency - Max | Supplied Contents | Contents | Function | Utilized IC / Part | Primary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | LVPECL | -40 °C | 85 °C | Clock Conditioner | 7 mm | 48-WQFN | 7 mm | Yes | Yes | 1 | 4 | No | Yes | LVCMOS LVDS LVPECL | 1 | 48-WFQFN Exposed Pad | 3.15 V | 3.45 V | Yes | Surface Mount | 1.724 GHz | |||||
Texas Instruments | LVPECL | -40 °C | 85 °C | Clock Conditioner | 7 mm | 48-WQFN | 7 mm | Yes | Yes | 1 | 4 | No | Yes | LVCMOS LVDS LVPECL | 1 | 48-WFQFN Exposed Pad | 3.15 V | 3.45 V | Yes | Surface Mount | 1.724 GHz | |||||
 Texas Instruments | LVPECL | -40 °C | 85 °C | Clock Conditioner | 7 mm | 48-WQFN | 7 mm | Yes | Yes | 1 | 4 | No | Yes | LVCMOS LVDS LVPECL | 1 | 48-WFQFN Exposed Pad | 3.15 V | 3.45 V | Yes | Surface Mount | 1.724 GHz | |||||

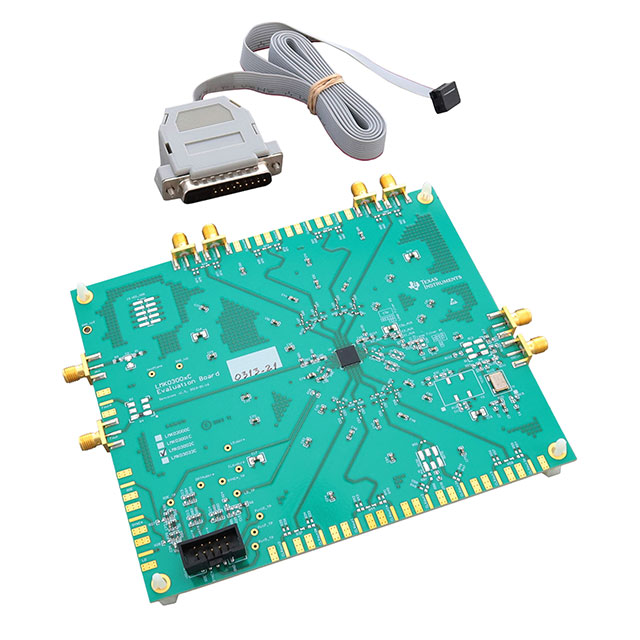

 Texas Instruments | Timing | Board(s) | Board | Clock Conditioner | LMK03002C | Jitter Cleaner | ||||||||||||||||||||
Texas Instruments | LVPECL | -40 °C | 85 °C | Clock Conditioner | 7 mm | 48-WQFN | 7 mm | Yes | Yes | 1 | 4 | No | Yes | LVCMOS LVDS LVPECL | 1 | 48-WFQFN Exposed Pad | 3.15 V | 3.45 V | Yes | Surface Mount | 1.724 GHz | |||||
Texas Instruments | LVPECL | -40 °C | 85 °C | Clock Conditioner | 7 mm | 48-WQFN | 7 mm | Yes | Yes | 1 | 4 | No | Yes | LVCMOS LVDS LVPECL | 1 | 48-WFQFN Exposed Pad | 3.15 V | 3.45 V | Yes | Surface Mount | 1.724 GHz |
