DAC81404 Series

Catalog

DATA CONVERSION IC DEVELOPMENT TOOLS DAC81404 EVALUATION MODULE

Part	Settling Time	Supplied Contents	Data Interface	Number of DAC's	Utilized IC / Part	DAC Type	Contents	Number of Bits	Differential Output	Output Type	Package Width	Package Name	Package Length	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Number of D/A Converters	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Architecture	Package / Case	Reference Type	INL/DNL (Max) (LSB)	DNL (Max) (LSB)	INL (Max) (LSB)

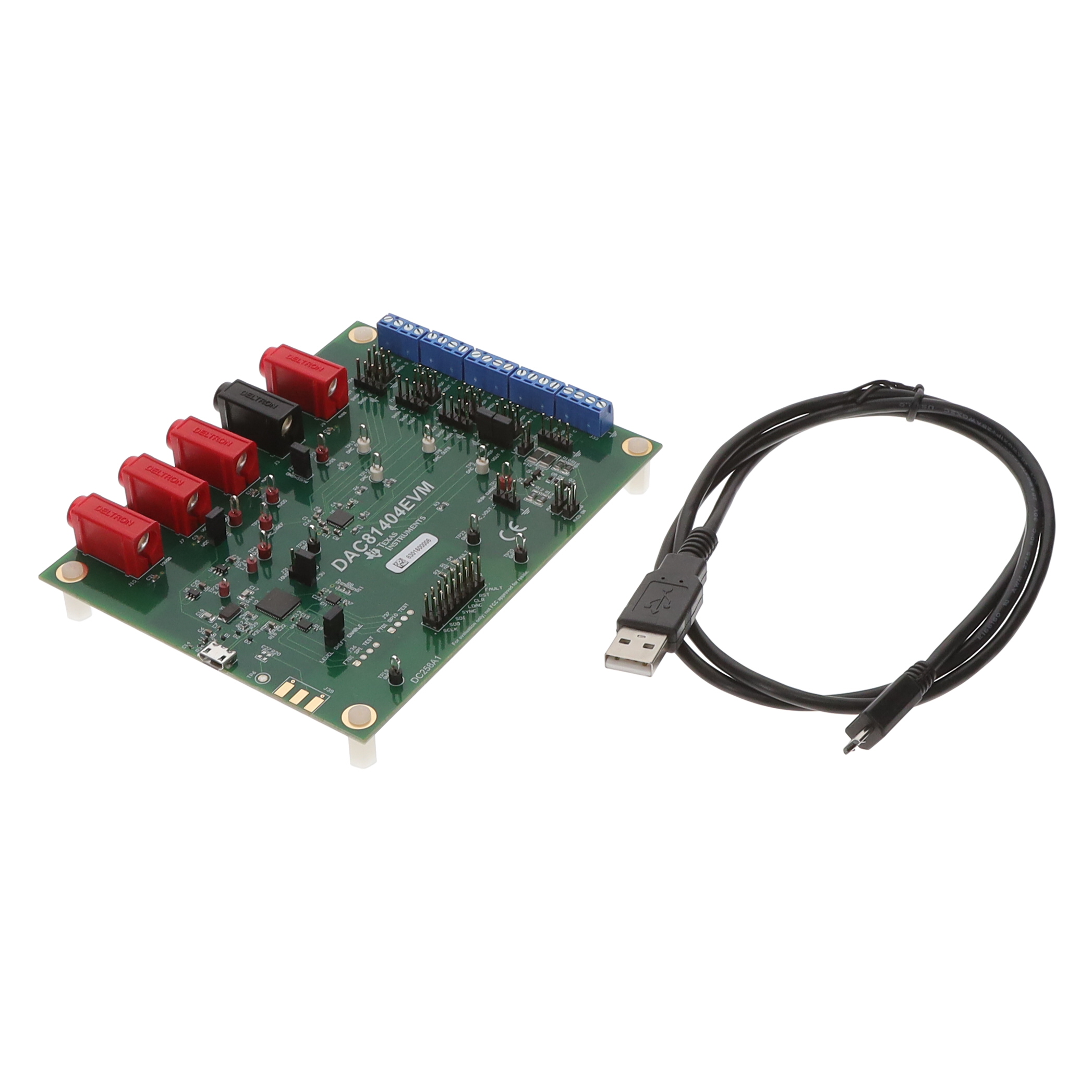

Texas Instruments DAC81404EVM	1.2 ms	Board(s)	Serial SPI	4	DAC81404	Voltage	Board	16 bits
Texas Instruments DAC81404RHBT	1.2 ms		Serial SPI					16 bits	Yes	Voltage - Buffered	5 mm	32-VQFN	5 mm	4.5 V	41.5 V	4 count	4.5 V	5.5 V	Surface Mount	125 °C	-40 °C	R-2R	32-VFQFN Exposed Pad	Internal	1 LSB	2 LSB	1 LSB
Texas Instruments DAC81404RHBR	1.2 ms		Serial SPI					16 bits	No	Voltage - Buffered	5 mm	32-VQFN	5 mm	4.5 V	41.5 V	4 count	4.5 V	5.5 V	Surface Mount	125 °C	-40 °C	R-2R	32-VFQFN Exposed Pad	Internal		2 LSB	1 LSB
