LMR36506 Series

Catalog

AUTOMOTIVE 3-V TO 65-V, 0.6-A UL

Part	Board Type	Supplied Contents	Total Output Count	Output Type	Non-Isolated Output Count	Current - Output	Main Purpose	Utilized IC / Part	Contents	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Regulator Topology	Frequency - Switching	Voltage - Output	Function	Grade	Voltage - Input (Min)	Voltage - Input (Max)	Number of Outputs	Voltage - Output (Min/Fixed)	Synchronous Rectifier	Mounting Type	Package Length	Package Name	Package Width	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Topology	Output Configuration	Qualification	Frequency - Switching (Max)	Frequency - Switching (Min)	Voltage - Output (Max)

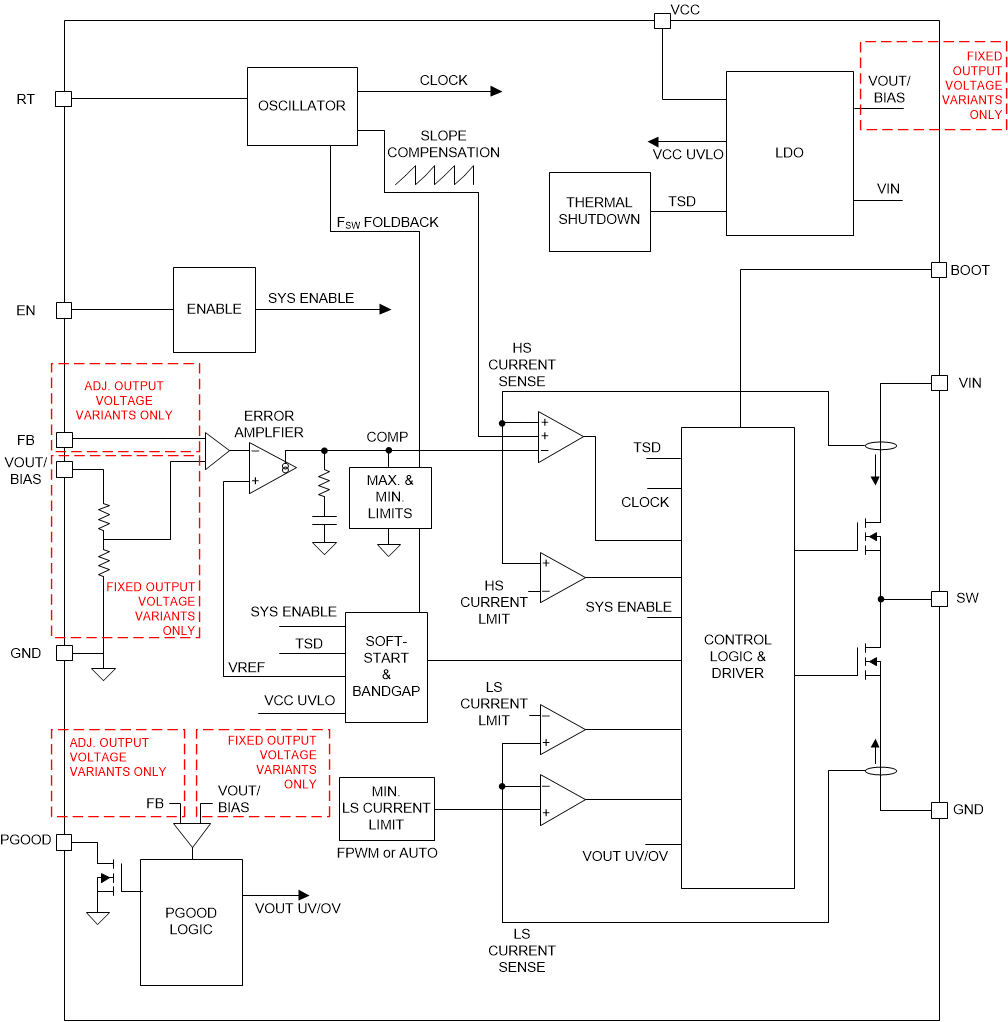

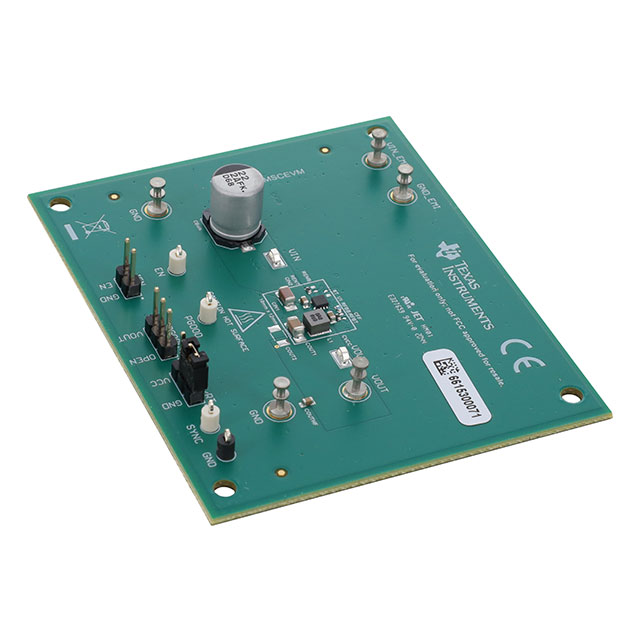

Texas Instruments LMR36506MSCEVM	Fully Populated	Board(s)	1	Non-Isolated	1 count	600 mA	DC/DC Step Down	LMR36506-Q1	Board	5.5 V	65 V	Buck	2.2 MHz	5 VDC
Texas Instruments LMR36506MSC3RPERQ1				Fixed		600 mA							2.2 MHz		Step-Down	Automotive	3 V	65 V	1	3.3 V	Yes	Surface Mount Wettable Flank	2 mm	9-VQFN-HR	2 mm	9-PowerVFQFN	125 °C	-40 °C	Buck	Positive	AEC-Q100
Texas Instruments LMR36506RS3QRPERQ1				Fixed		600 mA									Step-Down	Automotive	3 V	65 V	1	3.3 V	Yes	Surface Mount Wettable Flank	2 mm	9-VQFN-HR	2 mm	9-PowerVFQFN	125 °C	-40 °C	Buck	Positive	AEC-Q100	2.2 MHz	200 kHz
Texas Instruments LMR36506R5RPER				Fixed		600 mA									Step-Down		3 V	65 V	1	5 V	Yes	Surface Mount Wettable Flank	2 mm	9-VQFN-HR	2 mm	9-PowerVFQFN	150 °C	-40 °C	Buck	Positive		2.2 MHz	200 kHz
Texas Instruments LMR36506R3RPER				Fixed		600 mA									Step-Down		3 V	65 V	1	3.3 V	Yes	Surface Mount Wettable Flank	2 mm	9-VQFN-HR	2 mm	9-PowerVFQFN	150 °C	-40 °C	Buck	Positive		2.2 MHz	200 kHz
Texas Instruments LMR36506RREVM	Fully Populated	Board(s)	1	Non-Isolated	1 count	600 mA	DC/DC Step Down	LMR36506	Board	5.5 V	65 V	Buck	1 MHz	3.3 V
Texas Instruments LMR36506RF3RPER				Fixed		600 mA									Step-Down		3 V	65 V	1	3.3 V	Yes	Surface Mount Wettable Flank	2 mm	9-VQFN-HR	2 mm	9-PowerVFQFN	150 °C	-40 °C	Buck	Positive		2.2 MHz	200 kHz
Texas Instruments LMR36506MSC5RPERQ1				Fixed		600 mA							2.2 MHz		Step-Down	Automotive	3 V	65 V	1	5 V	Yes	Surface Mount Wettable Flank	2 mm	9-VQFN-HR	2 mm	9-PowerVFQFN	125 °C	-40 °C	Buck	Positive	AEC-Q100
Texas Instruments LMR36506RRPER				Adjustable		600 mA									Step-Down		3 V	65 V	1	1 V	Yes	Surface Mount Wettable Flank	2 mm	9-VQFN-HR	2 mm	9-PowerVFQFN	150 °C	-40 °C	Buck	Positive		2.2 MHz	200 kHz	65 V
Texas Instruments LMR36506MSCQRPERQ1				Adjustable		600 mA							2.2 MHz		Step-Down	Automotive	3 V	65 V	1	1 V	Yes	Surface Mount Wettable Flank	2 mm	9-VQFN-HR	2 mm	9-PowerVFQFN	125 °C	-40 °C	Buck	Positive	AEC-Q100			65 V
