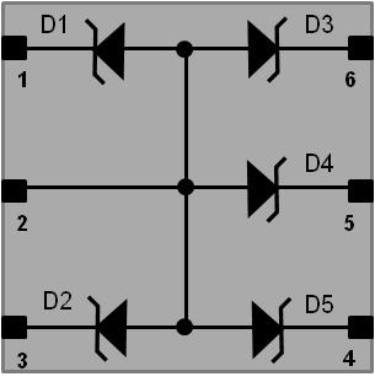

TPD5E003 Series
Manufacturer: Texas Instruments
Beta
⌘K
5 CHANNEL 7-PF, 5.5-V, 15-KV ESD PROTECTION DEVICE IN 1MM2 X2SON PACKAGE
| Part | Power - Peak Pulse | Type | Mounting Type | Applications | Voltage - Reverse Standoff (Max) | Voltage - Clamping (Max) | Operating Temperature (Max) | Operating Temperature (Min) | Capacitance | Package / Case | Voltage - Breakdown (Min) | Bidirectional Channels | Package Name | Package Length | Package Width | Unidirectional Channels | Power Line Protection | Current - Peak Pulse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 40 W | Zener | Surface Mount | General Purpose | 5 V | 19.5 V | 125 °C | -40 °C | 10 pF | 6-XFDFN | 6 V | 4 | 6-X2SON | 1 mm | 1 mm | 5 | No | 3 A |
