ADS62P49 Series

Catalog

2-CHANNEL DUAL ADC PIPELINED 250MSPS 14-BIT PARALLEL 64-PIN VQFN EP T/R

Part	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Input Type	Package Width	Package Name	Package Length	Features	Reference Type	Number of Inputs	Data Interface	Mounting Type	Architecture	Number of Bits	Configuration	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Sampling Rate (Per Second)	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Ratio - ADC	Ratio - S/H	Number of A/D Converters	Supplied Contents	Power (Typ)	Input Voltage (Value)	Contents	Utilized IC / Part
Texas Instruments ADS62P49IRGCR	64-VFQFN Exposed Pad	-40 °C	85 °C	Differential	9 mm	64-VQFN	9 mm	Simultaneous Sampling	External Internal	2	LVDS - Parallel Parallel	Surface Mount	Pipelined	14 bits	S/H-ADC	1.7 V	1.9 V	250 MHz	3.15 V	3.6 V	1	1	2 count
Texas Instruments ADS62P49IRGC25	64-VFQFN Exposed Pad	-40 °C	85 °C	Differential	9 mm	64-VQFN	9 mm	Simultaneous Sampling	External Internal	2	LVDS - Parallel Parallel	Surface Mount	Pipelined	14 bits	S/H-ADC	1.7 V	1.9 V	250 MHz	3.15 V	3.6 V	1	1	2 count
Texas Instruments ADS62P49IRGCT	64-VFQFN Exposed Pad	-40 °C	85 °C	Differential	9 mm	64-VQFN	9 mm	Simultaneous Sampling	External Internal	2	LVDS - Parallel Parallel	Surface Mount	Pipelined	14 bits	S/H-ADC	1.7 V	1.9 V	250 MHz	3.15 V	3.6 V	1	1	2 count

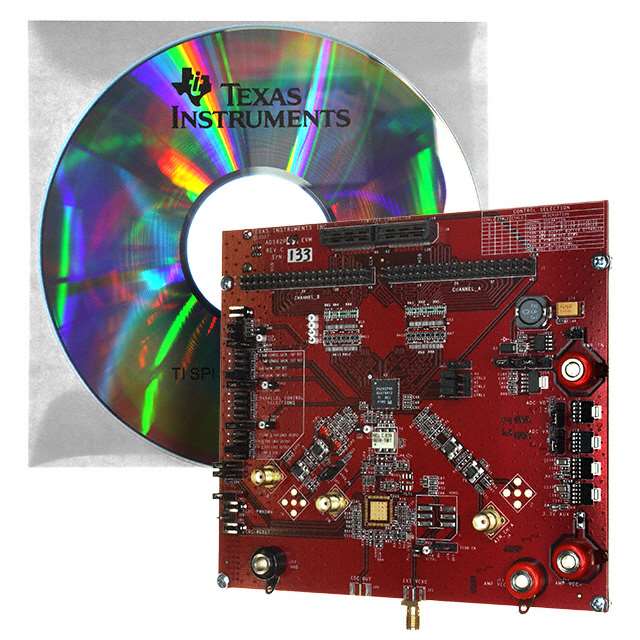

Texas Instruments ADS62P49EVM											LVDS - Parallel Serial			14 bits				250 MHz					2 count	Board(s)	1.25 W	2 Vpp	Board	ADS62P49
