CC2511 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC RF TXRX+MCU ISM>1GHZ 36VQFN
| Part | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Current - Transmitting (Max) | Current - Transmitting (Min) | Frequency | Data Rate (Max) | GPIO Count | Memory Type | Memory Size (Flash) | Memory Size (SRAM) | RF Family/Standard | Sensitivity | Operating Temperature (Max) | Operating Temperature (Min) | Type | Power - Output | Current - Receiving (Max) | Current - Receiving (Min) | Package / Case | Package Length | Package Name | Package Width | Modulation | Serial Interfaces | Mounting Type | Supplied Contents | For Use With/Related Products | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 3.6 V | 3 V | 26 mA | 15.5 mA | 2.4 GHz | 500 kbps | 19 | Flash SRAM | 16 kB | 2 kB | General ISM > 1GHz | -103 dBm | 85 °C | 0 °C | TxRx + MCU | 1 dBm | 22.9 mA | 14.7 mA | 36-VFQFN Exposed Pad | 6 mm | 36-VQFN | 6 mm | 2FSK GFSK MSK | I2S SPI USART USB | Surface Mount | ||||
 Texas Instruments | 3.6 V | 3 V | 26 mA | 15.5 mA | 2.4 GHz | 500 kbps | 19 | Flash SRAM | 16 kB | 2 kB | General ISM > 1GHz | -103 dBm | 85 °C | 0 °C | TxRx + MCU | 1 dBm | 22.9 mA | 14.7 mA | 36-VFQFN Exposed Pad | 6 mm | 36-VQFN | 6 mm | 2FSK GFSK MSK | I2S SPI USART USB | Surface Mount | ||||
Texas Instruments | 3.6 V | 3 V | 26 mA | 15.5 mA | 2.4 GHz | 500 kbps | 19 | Flash SRAM | 16 kB | 2 kB | General ISM > 1GHz | -103 dBm | 85 °C | 0 °C | TxRx + MCU | 1 dBm | 22.9 mA | 14.7 mA | 36-VFQFN Exposed Pad | 6 mm | 36-VQFN | 6 mm | 2FSK GFSK MSK | I2S SPI USART USB | Surface Mount | ||||
Texas Instruments | 3.6 V | 3 V | 26 mA | 15.5 mA | 2.4 GHz | 500 kbps | 19 | Flash SRAM | 16 kB | 2 kB | General ISM > 1GHz | -103 dBm | 85 °C | 0 °C | TxRx + MCU | 1 dBm | 22.9 mA | 14.7 mA | 36-VFQFN Exposed Pad | 6 mm | 36-VQFN | 6 mm | 2FSK GFSK MSK | I2S SPI USART USB | Surface Mount | ||||
Texas Instruments | 3.6 V | 3 V | 26 mA | 15.5 mA | 2.4 GHz | 500 kbps | 19 | Flash SRAM | 32 kB | 4 kB | General ISM > 1GHz | -103 dBm | 85 °C | 0 °C | TxRx + MCU | 1 dBm | 22.9 mA | 14.7 mA | 36-VFQFN Exposed Pad | 6 mm | 36-VQFN | 6 mm | 2FSK GFSK MSK | I2S SPI USART USB | Surface Mount | ||||

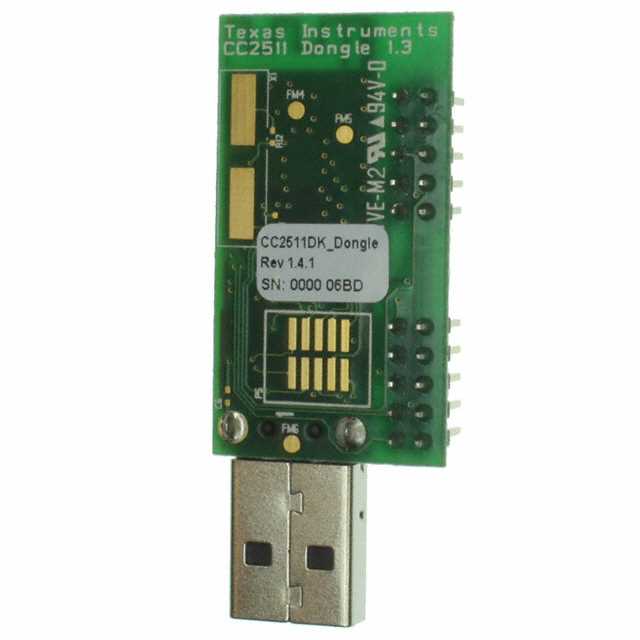

 Texas Instruments | 2.4 GHz | Transceiver | Board(s) | CC2511 | Board | CC2511 | |||||||||||||||||||||||
Texas Instruments | 3.6 V | 3 V | 26 mA | 15.5 mA | 2.4 GHz | 500 kbps | 19 | Flash SRAM | 8 kB | 1 kB | General ISM > 1GHz | -103 dBm | 85 °C | 0 °C | TxRx + MCU | 1 dBm | 22.9 mA | 14.7 mA | 36-VFQFN Exposed Pad | 6 mm | 36-VQFN | 6 mm | 2FSK GFSK MSK | I2S SPI USART USB | Surface Mount | ||||
Texas Instruments | 3.6 V | 3 V | 26 mA | 15.5 mA | 2.4 GHz | 500 kbps | 19 | Flash SRAM | 32 kB | 4 kB | General ISM > 1GHz | -103 dBm | 85 °C | 0 °C | TxRx + MCU | 1 dBm | 22.9 mA | 14.7 mA | 36-VFQFN Exposed Pad | 6 mm | 36-VQFN | 6 mm | 2FSK GFSK MSK | I2S SPI USART USB | Surface Mount |
