MSP430F2234 Series

Catalog

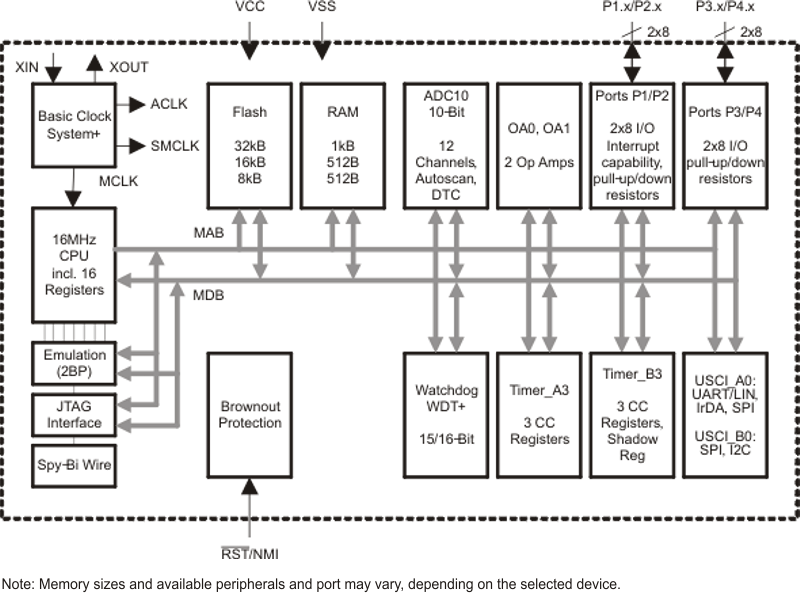

16 MHZ MCU WITH 8KB FLASH, 512B SRAM, 10-BIT ADC, 2 OPAMP, I2C/SPI/UART

Part	Core Processor	Program Memory Size	Program Memory Additional Size	Program Memory Depth	Program Memory Width	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Program Memory Type	Package Length	Package Name	Package Width	Oscillator Type	Peripherals	A/D Channels	A/D Resolution (bits)	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Number of I/O	RAM Size Depth	RAM Size Width	Speed	Core Size (Bit Width)	Package / Case
Texas Instruments MSP430F2234TDAR	MSP430 CPU16	8 KB	256 B	8 K	8 bit	I2C IrDA LINbus SCI SPI UART USART	105 °C	-40 °C	Surface Mount	FLASH	0.24 in	38-TSSOP	6.1 mm	Internal	Brown-out Detect POR PWM Reset WDT	12 count	10 bit	3.6 V	1.8 V	32	512	8 bit	16 MHz	16 Bit
Texas Instruments MSP430F2234IYFFR	MSP430 CPU16	8 KB	256 B	8 K	8 bit	I2C IrDA LINbus SCI SPI UART USART	85 °C	-40 °C	Surface Mount	FLASH	2.8 mm	49-DSBGA	2.8 mm	Internal	Brown-out Detect POR PWM Reset WDT	12 count	10 bit	3.6 V	1.8 V	32	512	8 bit	16 MHz	16 Bit	49-UFBGA DSBGA
Texas Instruments MSP430F2234TRHAT	MSP430 CPU16	8 KB	256 B	8 K	8 bit	I2C IrDA LINbus SCI SPI UART USART	105 °C	-40 °C	Surface Mount	FLASH	6 mm	40-VQFN	6 mm	Internal	Brown-out Detect POR PWM Reset WDT	12 count	10 bit	3.6 V	1.8 V	32	512	8 bit	16 MHz	16 Bit	40-VFQFN Exposed Pad
Texas Instruments MSP430F2234IRHAR	MSP430 CPU16	8 KB	256 B	8 K	8 bit	I2C IrDA LINbus SCI SPI UART USART	85 °C	-40 °C	Surface Mount	FLASH	6 mm	40-VQFN	6 mm	Internal	Brown-out Detect POR PWM Reset WDT	12 count	10 bit	3.6 V	1.8 V	32	512	8 bit	16 MHz	16 Bit	40-VFQFN Exposed Pad
Texas Instruments MSP430F2234IRHAT	MSP430 CPU16	8 KB	256 B	8 K	8 bit	I2C IrDA LINbus SCI SPI UART USART	85 °C	-40 °C	Surface Mount	FLASH	6 mm	40-VQFN	6 mm	Internal	Brown-out Detect POR PWM Reset WDT	12 count	10 bit	3.6 V	1.8 V	32	512	8 bit	16 MHz	16 Bit	40-VFQFN Exposed Pad
Texas Instruments MSP430F2234TDA	MSP430 CPU16	8 KB	256 B	8 K	8 bit	I2C IrDA LINbus SCI SPI UART USART	105 °C	-40 °C	Surface Mount	FLASH	0.24 in	38-TSSOP	6.1 mm	Internal	Brown-out Detect POR PWM Reset WDT	12 count	10 bit	3.6 V	1.8 V	32	512	8 bit	16 MHz	16 Bit
Texas Instruments MSP430F2234IDAR	MSP430 CPU16	8 KB	256 B	8 K	8 bit	I2C IrDA LINbus SCI SPI UART USART	85 °C	-40 °C	Surface Mount	FLASH	0.24 in	38-TSSOP	6.1 mm	Internal	Brown-out Detect POR PWM Reset WDT	12 count	10 bit	3.6 V	1.8 V	32	512	8 bit	16 MHz	16 Bit
Texas Instruments MSP430F2234TRHAR	MSP430 CPU16	8 KB	256 B	8 K	8 bit	I2C IrDA LINbus SCI SPI UART USART	105 °C	-40 °C	Surface Mount	FLASH	6 mm	40-VQFN	6 mm	Internal	Brown-out Detect POR PWM Reset WDT	12 count	10 bit	3.6 V	1.8 V	32	512	8 bit	16 MHz	16 Bit	40-VFQFN Exposed Pad
Texas Instruments MSP430F2234IDA	MSP430 CPU16	8 KB	256 B	8 K	8 bit	I2C IrDA LINbus SCI SPI UART USART	85 °C	-40 °C	Surface Mount	FLASH	0.24 in	38-TSSOP	6.1 mm	Internal	Brown-out Detect POR PWM Reset WDT	12 count	10 bit	3.6 V	1.8 V	32	512	8 bit	16 MHz	16 Bit
