ADS7040 Series

Ultra-low-power, ultra-small-size SAR ADC, 8 bit, 1 MSPS, single ended

Catalog

Ultra-low-power, ultra-small-size SAR ADC, 8 bit, 1 MSPS, single ended

Part	Ratio - ADC	Ratio - S/H	Package / Case	Package Name	Package Length	Package Width	Number of A/D Converters	Sampling Rate (Per Second)	Number of Inputs	Mounting Type	Architecture	Number of Bits	Operating Temperature (Max)	Operating Temperature (Min)	Configuration	Reference Type	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Data Interface	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Input Type	Supplied Contents	Contents	Utilized IC / Part	Power (Typ)	Input Voltage (Max)	Input Voltage (Min)
Texas Instruments ADS7040IRUGR	1	1	8-XFQFN	8-X2QFN	1.5 mm	1.5 mm	1 count	1 MHz	1	Surface Mount	SAR	8 bits	125 °C	-40 °C	S/H-ADC	Supply	1.65 V	3.6 V	SPI	1.65 V	3.6 V	Single Ended
Texas Instruments ADS7040IDCUR	1	1		8-VFSOP 8-VSSOP	0.091 in	2.3 mm	1 count	1 MHz	1	Surface Mount	SAR	8 bits	125 °C	-40 °C	S/H-ADC	Supply	1.65 V	3.6 V	SPI	1.65 V	3.6 V	Single Ended
Texas Instruments ADS7040EVM-PDK							1 count	1 MHz				8 bits							SPI				Board(s) Cable(s)	Board Cable	ADS7040	0.171 mW	3.6 V	0 mV
Texas Instruments ADS7040IDCUT	1	1		8-VFSOP 8-VSSOP	0.091 in	2.3 mm	1 count	1 MHz	1	Surface Mount	SAR	8 bits	125 °C	-40 °C	S/H-ADC	Supply	1.65 V	3.6 V	SPI	1.65 V	3.6 V	Single Ended

Catalog

Ultra-low-power, ultra-small-size SAR ADC, 8 bit, 1 MSPS, single ended

Description

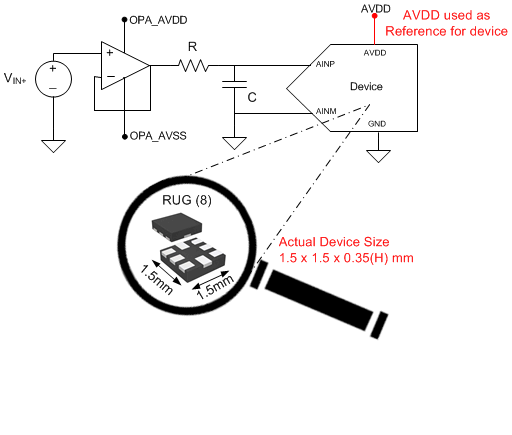

The ADS7040 is a 8-bit, 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (1.65 V to 3.6 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by theCSand SCLK signals. The input signal is sampled with theCSfalling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The ADS7040 complies with the JESD8-7A standard for a normal DVDD range (1.65 V to 1.95 V). The ADS7040 is available in 8-pin, miniature, leaded, and X2QFN packages and is specified for operation from –40°C to 125°C. Miniature form-factor and extremely low-power consumption make this device suitable for space-constrained, battery-powered applications. The ADS7040 is a 8-bit, 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (1.65 V to 3.6 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by theCSand SCLK signals. The input signal is sampled with theCSfalling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The ADS7040 complies with the JESD8-7A standard for a normal DVDD range (1.65 V to 1.95 V). The ADS7040 is available in 8-pin, miniature, leaded, and X2QFN packages and is specified for operation from –40°C to 125°C. Miniature form-factor and extremely low-power consumption make this device suitable for space-constrained, battery-powered applications.
