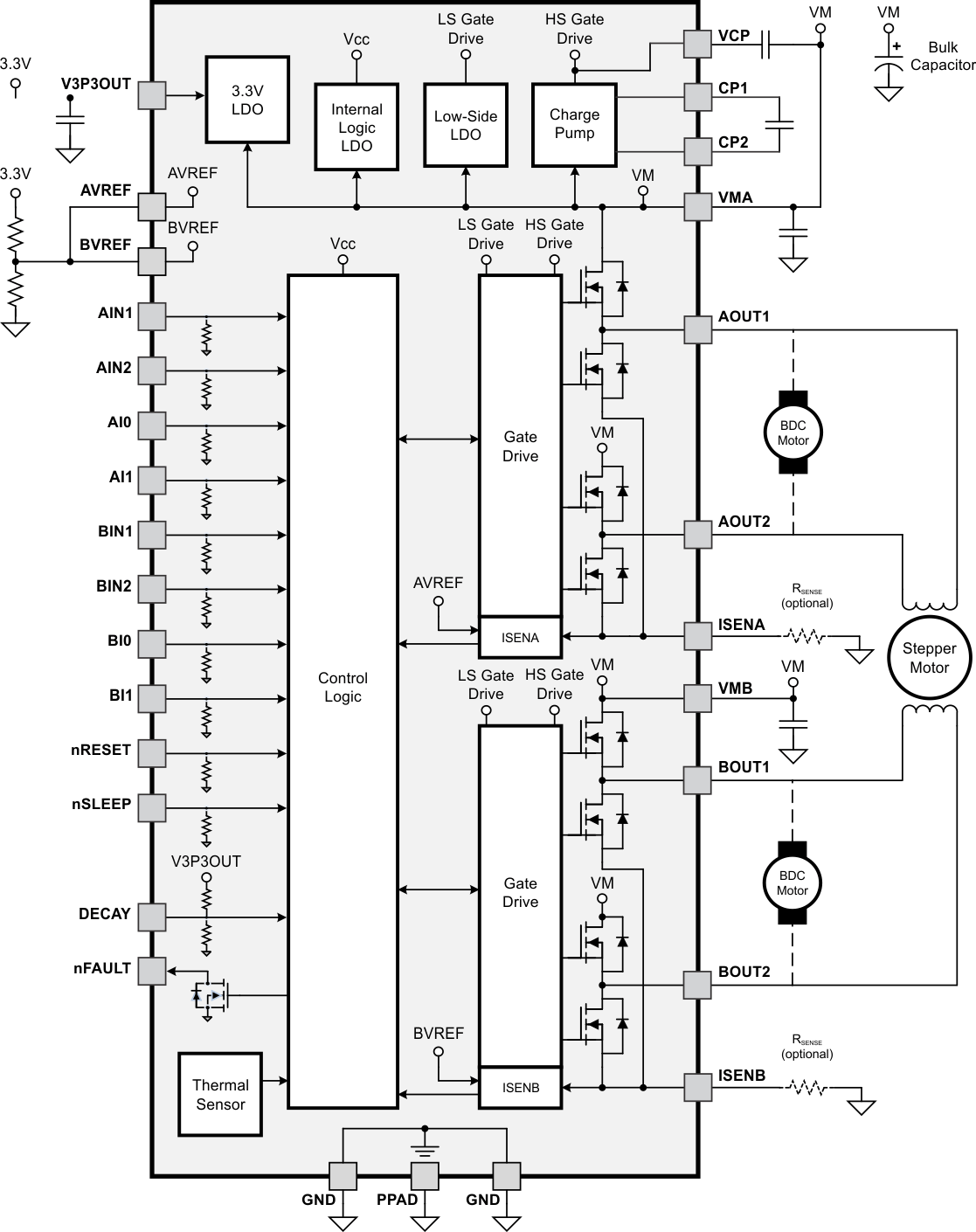

DRV8843 Series

Catalog

MOTOR / MOTION / IGNITION CONTROLLERS & DRIVERS 2.5A DUAL BRUSHED SG L BIPOLAR STEPPER A 595-DRV8843PWPR

Part	Current - Output	Function	Mounting Type	Motor Type - Stepper	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Technology	Half-Bridge Count	Output Configuration	Motor Type - AC, DC	Voltage - Load (Min)	Voltage - Load (Max)	Interface	Package Width	Package Length	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Supplied Contents	Type	Utilized IC / Part	Embedded Bit Width	Embedded	Contents	Primary Attributes	Secondary Attributes
Texas Instruments DRV8843PWP	1.75 A	Control and Power Stage Driver - Fully Integrated	Surface Mount	Bipolar	28-HTSSOP 28-PowerTSSOP	-40 °C	150 °C	General Purpose	Power MOSFET	4	Half Bridge	Brushed DC	8.2 V	45 V	Parallel	4.4 mm	0.173 in	45 V	8.2 V
Texas Instruments DRV8843PWPR	1.75 A	Control and Power Stage Driver - Fully Integrated	Surface Mount	Bipolar	28-HTSSOP 28-PowerTSSOP	-40 °C	150 °C	General Purpose	Power MOSFET	4	Half Bridge	Brushed DC	8.2 V	45 V	Parallel	4.4 mm	0.173 in	45 V	8.2 V
Texas Instruments DRV8843EVM		Driver Motor Controller																		Board(s)	Power Management	DRV8843	16 bit	MCU Yes	Board	Dual Full-Bridge (H-Bridge) Driver with PWM Current Controller	Graphical User Interface (GUI)
