TLC5929 Series

Catalog

16-CH CONSTANT CURRENT LED DRIVER WITH 7-BIT GLOBAL BRIGHTNESS, POWER-SAVE, AND SELF-DIAGNOSTICS

Part	Topology	Voltage - Supply (Max)	Current - Output / Channel	Voltage - Output	Mounting Type	Package Name	Number of Outputs	Voltage - Supply (Min)	Type	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Length	Frequency	Internal Switch(s)	Applications	Package / Case	Total Output Count	Output Type	Non-Isolated Output Count	Utilized IC / Part	Contents	Voltage - Input (Minimum)	Voltage - Input (Maximum)
Texas Instruments TLC5929DBQ	Shift Register	5.5 V	50 mA	10 V	Surface Mount	24-SSOP	16	3 V	Linear	85 °C	-40 °C	3.9 mm	0.154 in	20 MHz	Yes	Signage
Texas Instruments TLC5929PWP	Shift Register	5.5 V	50 mA	10 V	Surface Mount	24-HTSSOP 24-PowerTSSOP	16	3 V	Linear	85 °C	-40 °C	4.4 mm	0.173 in	20 MHz	Yes	Signage
Texas Instruments TLC5929DBQR	Shift Register	5.5 V	50 mA	10 V	Surface Mount	24-SSOP	16	3 V	Linear	85 °C	-40 °C	3.9 mm	0.154 in	20 MHz	Yes	Signage
Texas Instruments TLC5929RGET	Shift Register	5.5 V	50 mA	10 V	Surface Mount	24-VQFN	16	3 V	Linear	85 °C	-40 °C	4 mm	4 mm	20 MHz	Yes	Signage	24-VFQFN Exposed Pad
Texas Instruments TLC5929PWPR	Shift Register	5.5 V	50 mA	10 V	Surface Mount	24-HTSSOP 24-PowerTSSOP	16	3 V	Linear	85 °C	-40 °C	4.4 mm	0.173 in	20 MHz	Yes	Signage

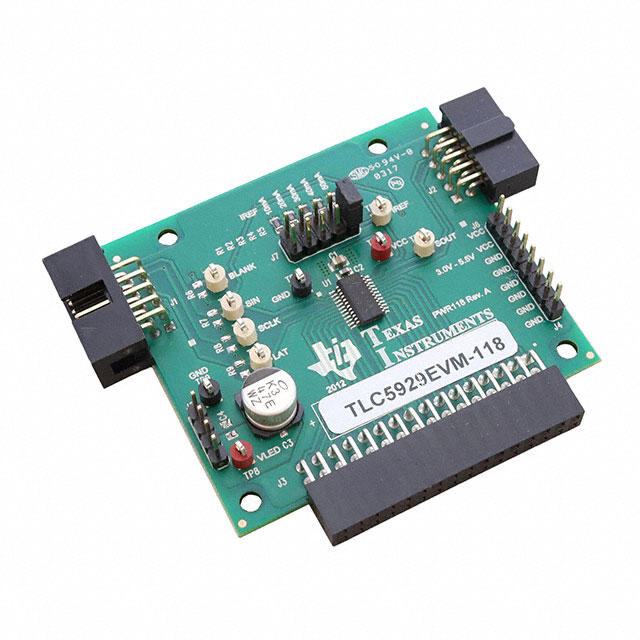

Texas Instruments TLC5929EVM-118			50 mA															16 count	Non-Isolated	16 count	TLC5929	Board	3 V	5.5 V
Texas Instruments TLC5929RGER	Shift Register	5.5 V	50 mA	10 V	Surface Mount	24-VQFN	16	3 V	Linear	85 °C	-40 °C	4 mm	4 mm	20 MHz	Yes	Signage	24-VFQFN Exposed Pad
