TPS55386 Series

Catalog

4.5V TO 28V INPUT, DUAL 3A OUTPUTS, 600KHZ STEP-DOWN CONVERTER WITH EXTERNAL COMPENSATION

Part	Output Configuration	Package Name	Function	Mounting Type	Topology	Voltage - Input (Max)	Number of Outputs	Voltage - Output (Max)	Current - Output	Voltage - Input (Min)	Package Length	Package Width	Synchronous Rectifier	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output (Min/Fixed)	Frequency - Switching	Total Output Count	Non-Isolated Output Count	Board Type	Supplied Contents	Utilized IC / Part	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Main Purpose	Voltage - Output	Current - Output (Min)	Current - Output (Max)	Regulator Topology	Contents
Texas Instruments TPS55386PWPR	Positive	16-HTSSOP 16-PowerTSSOP	Step-Down	Surface Mount	Buck	28 V	2	25.2 V	3 A	4.5 V	0.173 in	4.4 mm	No	Adjustable	125 °C	-40 °C	0.8 V	630 kHz
Texas Instruments TPS55386PWP	Positive	16-HTSSOP 16-PowerTSSOP	Step-Down	Surface Mount	Buck	28 V	2	25.2 V	3 A	4.5 V	0.173 in	4.4 mm	No	Adjustable	125 °C	-40 °C	0.8 V	630 kHz

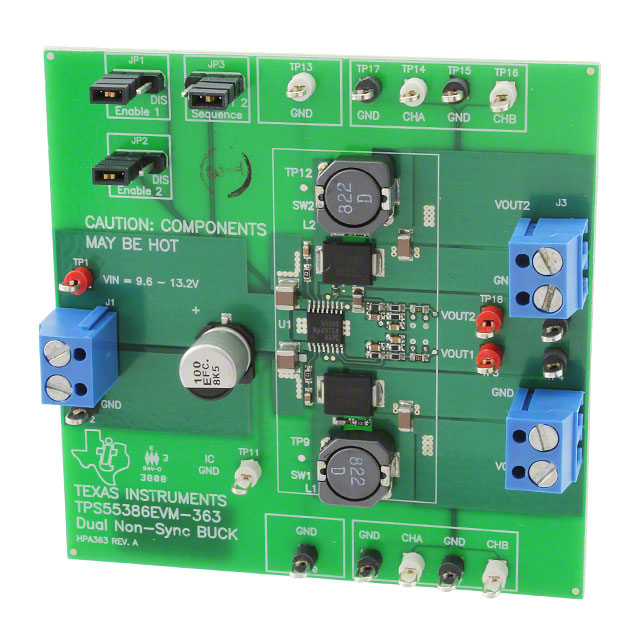

Texas Instruments TPS55386EVM-363														Non-Isolated				600 kHz	2	2 count	Fully Populated	Board(s)	TPS55386	13.2 V	9.6 V	DC/DC Step Down	3.3 V 5.1 V	3 A	3 A	Buck	Board
