BQ79606 Series
Manufacturer: Texas Instruments
Beta
⌘K
6-S AUTOMOTIVE PRECISION BATTERY MONITOR, BALANCER AND INTEGRATED PROTECTOR WITH ASIL-D COMPLIANCE
| Part | Fault Protection | Function | Battery Chemistry | Package / Case | Mounting Type | Interface | Package Length | Package Name | Package Width | Operating Temperature (Max) | Operating Temperature (Min) | Qualification | Number of Cells (Min) | Number of Cells (Max) | Grade | Supplied Contents | Contents | Utilized IC / Part | Secondary Attributes | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Over Temperature Over/Under Voltage | Battery Monitor | Lithium Ion | 48-PowerTQFP | Surface Mount | SPI UART | 7 mm | 48-HTQFP | 7 mm | 105 °C | -40 °C | AEC-Q100 | 3 | 6 | Automotive | |||||

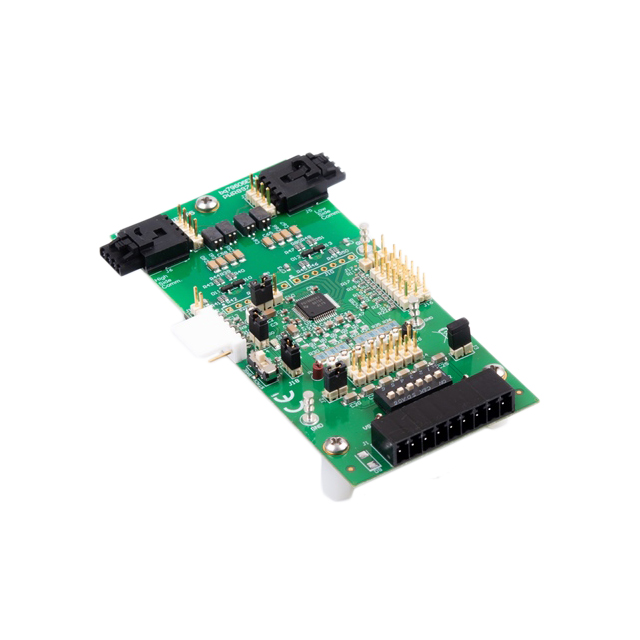

 Texas Instruments | Battery Monitor | Board(s) | Board | BQ79606A-Q1 | On-Board LEDs Test Points | Power Management | ||||||||||||||
Texas Instruments | Over Temperature Over/Under Voltage | Battery Monitor | Lithium Ion | 48-PowerTQFP | Surface Mount | SPI UART | 7 mm | 48-HTQFP | 7 mm | 105 °C | -40 °C | AEC-Q100 | 3 | 6 | Automotive |
