LM3000 Series

Catalog

SWITCHING REGULATOR/CONTROLLER

Part	Package Length	Package Name	Package Width	Output Configuration	Output Phases	Frequency - Switching (Min)	Frequency - Switching (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Package / Case	Synchronous Rectifier	Function	Clock Sync	Duty Cycle (Max)	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Output Type	Control Features	Number of Outputs	Topology	Board Type	Supplied Contents	Total Output Count	Non-Isolated Output Count	Frequency - Switching	Current - Output (Max)	Current - Output (Min)	Regulator Topology	Voltage - Output	Contents	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Utilized IC / Part	Main Purpose
Texas Instruments LM3000ASQ/NOPB	5 mm	32-WQFN	5 mm	Positive	2	200 kHz	1.5 MHz	125 °C	-40 °C	Surface Mount	32-WFQFN Exposed Pad	Yes	Step-Down	Yes	85 %	3.3 V	5.5 V	Transistor Driver	Current Limit Enable Frequency Control Power Good Soft Start Tracking	2	Buck
Texas Instruments LM3000SQ/NOPB	5 mm	32-WQFN	5 mm	Positive	2	200 kHz	1.5 MHz	125 °C	-40 °C	Surface Mount	32-WFQFN Exposed Pad	Yes	Step-Down	Yes	85 %	3.3 V	5.5 V	Transistor Driver	Current Limit Enable Frequency Control Power Good Soft Start Tracking	2	Buck
Texas Instruments LM3000ASQX/NOPB	5 mm	32-WQFN	5 mm	Positive	2	200 kHz	1.5 MHz	125 °C	-40 °C	Surface Mount	32-WFQFN Exposed Pad	Yes	Step-Down	Yes	85 %	3.3 V	5.5 V	Transistor Driver	Current Limit Enable Frequency Control Power Good Soft Start Tracking	2	Buck
Texas Instruments LM3000ASQ/NOPB	5 mm	32-WQFN	5 mm	Positive	2	200 kHz	1.5 MHz	125 °C	-40 °C	Surface Mount	32-WFQFN Exposed Pad	Yes	Step-Down	Yes	85 %	3.3 V	5.5 V	Transistor Driver	Current Limit Enable Frequency Control Power Good Soft Start Tracking	2	Buck

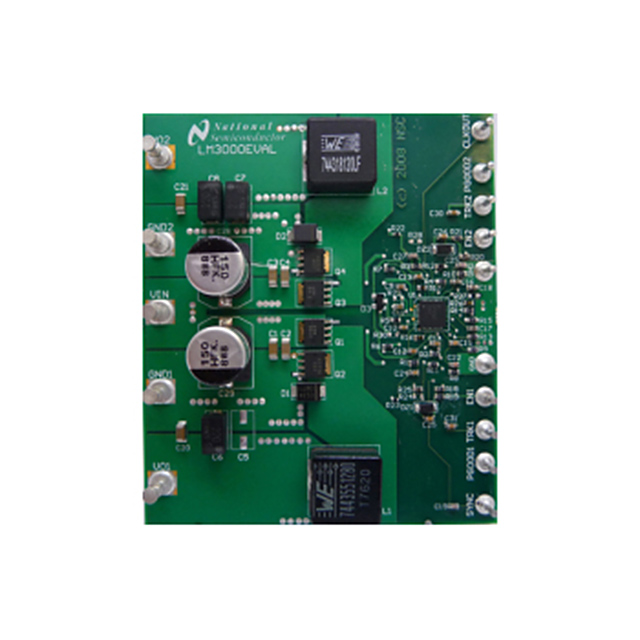

Texas Instruments LM3000EVAL/NOPB																		Non-Isolated				Fully Populated	Board(s)	2	2 count	500 kHz	15 A	8 A	Buck	1.2 V 3.3 V	Board	6 V	18 V	LM3000	DC/DC Step Down
Texas Instruments LM3000SQX/NOPB	5 mm	32-WQFN	5 mm	Positive	2	200 kHz	1.5 MHz	125 °C	-40 °C	Surface Mount	32-WFQFN Exposed Pad	Yes	Step-Down	Yes	85 %	3.3 V	5.5 V	Transistor Driver	Current Limit Enable Frequency Control Power Good Soft Start Tracking	2	Buck
Texas Instruments LM3000EVAL																		Non-Isolated				Fully Populated	Board(s)	2	2 count	500 kHz	15 A	8 A	Buck	1.2 V 3.3 V	Board	6 V	18 V	LM3000	DC/DC Step Down
