CC2564MODA Series
Manufacturer: Texas Instruments
Beta
⌘K
BLUETOOTH® 4.1 WITH BASIC RATE, ENHANCED DATA RATE, LOW ENERGY (LE) MODULE WITH INTEGRATED ANTENNA
| Part | Frequency | Serial Interfaces | Sensitivity | Modulation | Utilized IC / Part | RF Family/Standard | Data Rate | Package / Case | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Current - Receiving (Min) | Current - Receiving (Max) | Power - Output | Protocol | Mounting Type | Antenna Type | Operating Temperature (Max) | Operating Temperature (Min) | Current - Transmitting (Min) | Current - Transmitting (Max) | Contents | Type | Platform | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 2.4 GHz | UART | -93 dBm | DPSK DQPSK GFSK | CC2564 | Bluetooth | 3.9 Mbps | 33-SMD Module | 4.8 V | 2.2 V | 40.5 mA | 41.2 mA | 10 dBm | Bluetooth v4.0 Dual Mode | Surface Mount | Chip Integrated | 85 °C | -30 °C | 40.5 mA | 41.2 mA | ||||

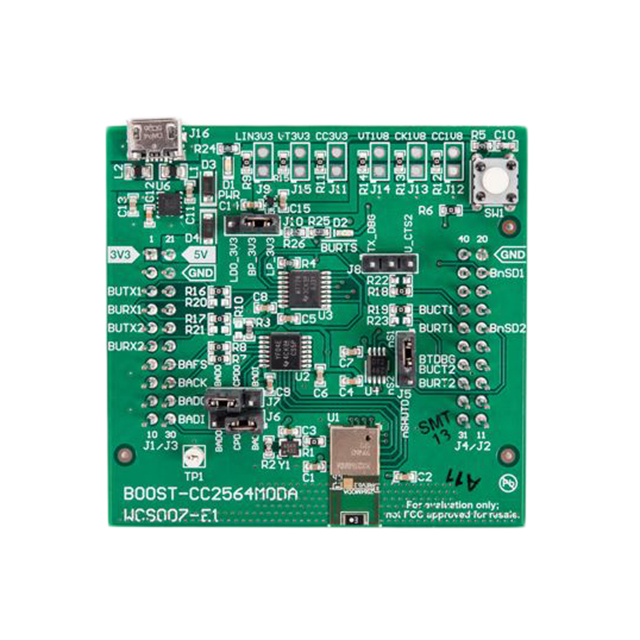

 Texas Instruments | CC2564 | Board | RF | LaunchPad™ | Bluetooth Low Energy (BLE) |
