DAC8568 Series

Catalog

16-BIT, OCTAL-CHANNEL, ULTRA-LOW GLITCH, VOLTAGE OUTPUT DAC WITH 2.5V, 2PPM/°C INTERNAL REFERENCE

Part	INL (LSB) Tolerance	DNL (LSB) Tolerance	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Data Interface	Reference Type	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Package Name	Differential Output	Package Length	Package Width	Settling Time	Number of Bits	Mounting Type	Output Type	Number of D/A Converters	Architecture	Operating Temperature (Max)	Operating Temperature (Min)	Supplied Contents	Contents	Number of DAC's	DAC Type	Utilized IC / Part	Function	Type	Platform
Texas Instruments DAC8568IAPW	4 LSB	0.2 LSB	2.7 V	5.5 V	DSP SPI	External Internal	2.7 V	5.5 V	16-TSSOP	No	0.173 in	4.4 mm	10 µs	16 bits	Surface Mount	Voltage - Buffered	8 count	String DAC	125 °C	-40 °C
Texas Instruments DAC8568IAPWR	4 LSB	0.2 LSB	2.7 V	5.5 V	DSP SPI	External Internal	2.7 V	5.5 V	16-TSSOP	No	0.173 in	4.4 mm	10 µs	16 bits	Surface Mount	Voltage - Buffered	8 count	String DAC	125 °C	-40 °C
Texas Instruments DAC8568IDPWR	4 LSB	0.2 LSB	2.7 V	5.5 V	DSP SPI	External Internal	2.7 V	5.5 V	16-TSSOP	No	0.173 in	4.4 mm	10 µs	16 bits	Surface Mount	Voltage - Buffered	8 count	String DAC	125 °C	-40 °C
Texas Instruments DAC8568IDPW	4 LSB	0.2 LSB	2.7 V	5.5 V	DSP SPI	External Internal	2.7 V	5.5 V	16-TSSOP	No	0.173 in	4.4 mm	10 µs	16 bits	Surface Mount	Voltage - Buffered	8 count	String DAC	125 °C	-40 °C
Texas Instruments DAC8568EVM					Serial								5 µs	16 bits							Board(s)	Board	8	Voltage	DAC8568
Texas Instruments DAC8568IBPW	4 LSB	0.2 LSB	2.7 V	5.5 V	DSP SPI	External Internal	2.7 V	5.5 V	16-TSSOP	No	0.173 in	4.4 mm	10 µs	16 bits	Surface Mount	Voltage - Buffered	8 count	String DAC	125 °C	-40 °C

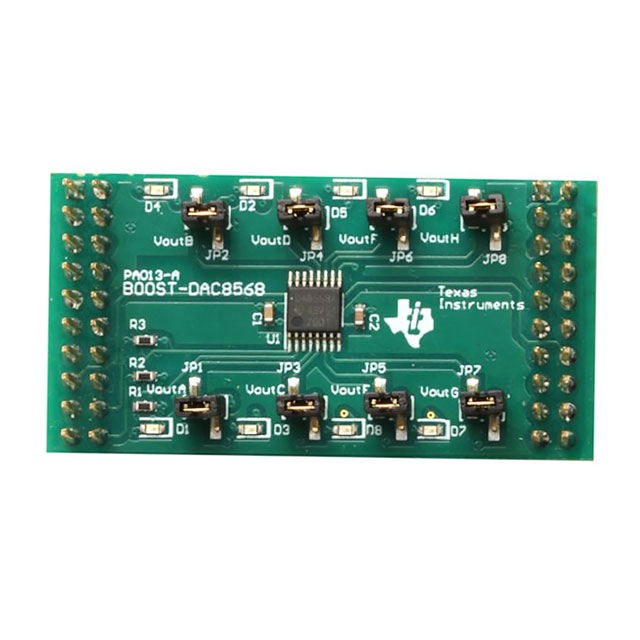

Texas Instruments BOOST-DAC8568																						Board			DAC8568	Digital to Analog Converter (DAC)	Data Acquisition	LaunchPad™
Texas Instruments DAC8568ICPWR	4 LSB	0.2 LSB	2.7 V	5.5 V	DSP SPI	External Internal	2.7 V	5.5 V	16-TSSOP	No	0.173 in	4.4 mm	10 µs	16 bits	Surface Mount	Voltage - Buffered	8 count	String DAC	125 °C	-40 °C
Texas Instruments DAC8568IBPWR	4 LSB	0.2 LSB	2.7 V	5.5 V	DSP SPI	External Internal	2.7 V	5.5 V	16-TSSOP	No	0.173 in	4.4 mm	10 µs	16 bits	Surface Mount	Voltage - Buffered	8 count	String DAC	125 °C	-40 °C
Texas Instruments DAC8568ICPW	4 LSB	0.2 LSB	2.7 V	5.5 V	DSP SPI	External Internal	2.7 V	5.5 V	16-TSSOP	No	0.173 in	4.4 mm	10 µs	16 bits	Surface Mount	Voltage - Buffered	8 count	String DAC	125 °C	-40 °C
