DAC3161 Series

Catalog

DAC3161 DAC EVALUATION BOARD 500MSPS GRAPHICAL USER INTERFACE IDE

Part	Settling Time	Supplied Contents	Contents	DAC Type	Data Interface	Number of DAC's	Utilized IC / Part	Sampling Rate (Per Second)	Number of Bits	Settling Time (Typical)	INL (LSB) Tolerance	DNL (LSB) Tolerance	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 1 Min)	Operating Temperature (Min)	Operating Temperature (Max)	Differential Output	Reference Type	Number of D/A Converters	Architecture	Output Type	Package Width	Package Name	Package Length	Mounting Type	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Package / Case

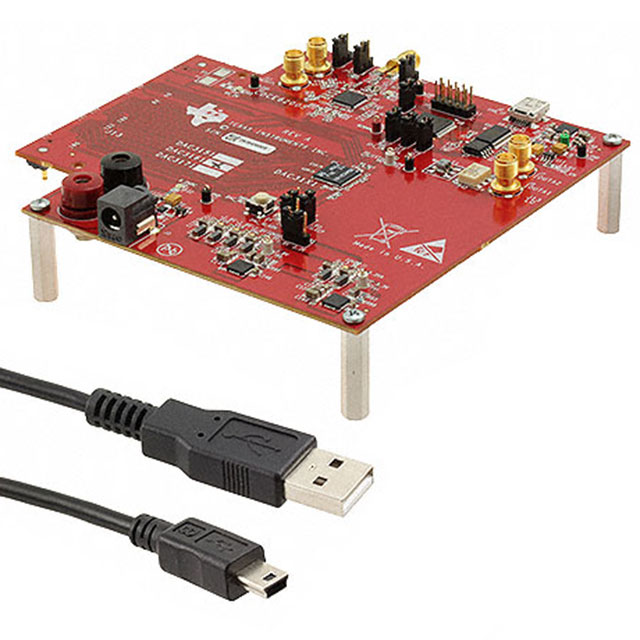

Texas Instruments DAC3161EVM	11 ns	Board(s)	Board	Current	LVDS - Parallel	1	DAC3161	500 MHz	12 bits
Texas Instruments DAC3161IRGCT					LVDS - Parallel				12 bits	11 ns	0.5 LSB	0.2 LSB	3.15 V	3.45 V	1.89 V	1.71 V	-40 °C	85 °C	Yes	External Internal	1 count	Current Source	Current - Unbuffered	9 mm	64-VQFN	9 mm	Surface Mount	1.89 V	1.71 V	64-VFQFN Exposed Pad
Texas Instruments DAC3161IRGCR					LVDS - Parallel				12 bits	11 ns	0.5 LSB	0.2 LSB	3.15 V	3.45 V	1.89 V	1.71 V	-40 °C	85 °C	Yes	External Internal	1 count	Current Source	Current - Unbuffered	9 mm	64-VQFN	9 mm	Surface Mount	1.89 V	1.71 V	64-VFQFN Exposed Pad
