OPA1622 Series
Manufacturer: Texas Instruments
Beta
⌘K
SOUNDPLUS™ AUDIO OPERATIONAL AMPLIFIER WITH HIGH PERFORMANCE, LOW THD+N AND BIPOLAR INPUT
| Part | Voltage - Input Offset | Slew Rate | Mounting Type | Voltage - Supply Span (Max) | Amplifier Type | Package Width | Package Name | Package Length | Gain Bandwidth Product | Number of Circuits | Current - Input Bias | Voltage - Supply Span (Min) | Current - Supply | Package / Case | Operating Temperature (Max) | Operating Temperature (Min) | Current - Output / Channel | Current - Supply (Main IC) | Supplied Contents | Board Type | Contents | Output Type | Channels per IC (Dual) | Channels per IC (Type) | Channels per IC (Count) | Utilized IC / Part | Supply Configuration | Voltage - Supply (Dual) Maximum (Magnitude) | Voltage - Supply (Single) Minimum | Voltage - Supply (Dual) Minimum (Magnitude) | Voltage - Supply (Single) Maximum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 100 µV | 10 V/µs | Surface Mount | 36 V | Audio | 3 mm | 10-VSON | 3 mm | 32 MHz | 2 | 1.2 µA | 4 V | 2.6 mA | 10-VFDFN Exposed Pad | 125 °C | -40 °C | 145 mA | ||||||||||||||

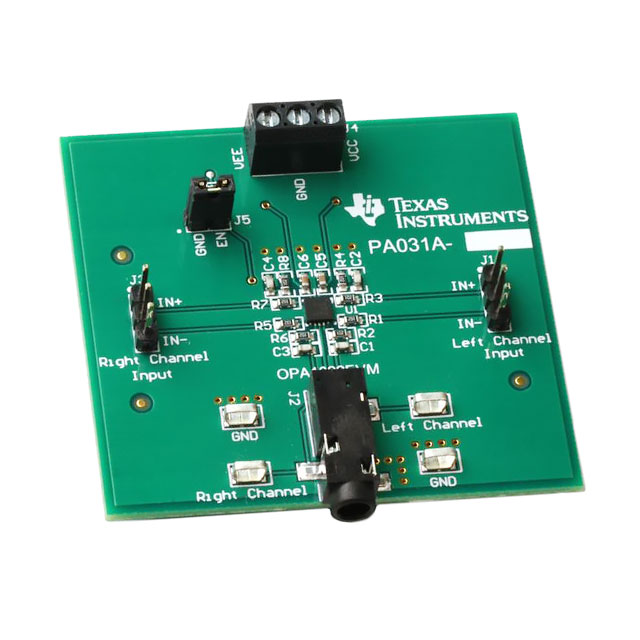

 Texas Instruments | 10 V/µs | Audio | 32 MHz | 145 mA | 0.0026 mA | Board(s) | Fully Populated | Board | Single-Ended | 2 | Dual | 2 | OPA1622 | Dual Single | 18 V | 4 V | 2 V | 36 V |
