TPD2E1B06 Series

Dual 1-pF, ±5.5-V, ±10-kV ESD protection diode with ESD rating for USB 2.0

Catalog

Dual 1-pF, ±5.5-V, ±10-kV ESD protection diode with ESD rating for USB 2.0

Part	Type	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Bidirectional Channels	Package / Case	Mounting Type	Voltage - Clamping (Max) (Typ)	Power - Peak Pulse	Power Line Protection	Package Name	Current - Peak Pulse	Voltage - Breakdown (Min)	Voltage - Reverse Standoff (Max)
Texas Instruments TPD2E1B06DRLR	Zener	125 °C	-40 °C	General Purpose	2	SOT-563 SOT-666	Surface Mount	15 V	35 W	No	SOT-5X3	2.5 A	7 V	5.5 V

Catalog

Dual 1-pF, ±5.5-V, ±10-kV ESD protection diode with ESD rating for USB 2.0

Description

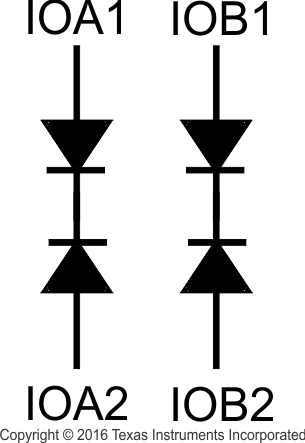

The TPD2E1B06 device is a dual-channel, ultra-low capacitance ESD protection device. It offers ±10-KV IEC contact ESD protection. Its 1-pF line capacitance makes it suitable for a wide range of applications. Typical application interfaces are USB 2.0, LVDS, and I2C. The TPD2E1B06 device has two common layout methods, and both are highlighted inLayout. The TPD2E1B06 device is a dual-channel, ultra-low capacitance ESD protection device. It offers ±10-KV IEC contact ESD protection. Its 1-pF line capacitance makes it suitable for a wide range of applications. Typical application interfaces are USB 2.0, LVDS, and I2C. The TPD2E1B06 device has two common layout methods, and both are highlighted inLayout.
