LM3673 Series

Catalog

SWITCHING VOLTAGE REGULATORS 2MHZ 350MA STEP-DOW N DC-DC CONVERTER 5- A 926-LM3673TLXADJNOPB

Part	Package / Case	Topology	Voltage - Output (Min/Fixed)	Voltage - Output (Max)	Function	Package Width	Package Name	Package Length	Voltage - Input (Min)	Synchronous Rectifier	Number of Outputs	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Max)	Current - Output	Mounting Type	Frequency - Switching	Output Configuration	Output Type	Supplied Contents	Board Type	Total Output Count	Non-Isolated Output Count	Utilized IC / Part	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Contents	Regulator Topology	Voltage - Output	Main Purpose	Voltage - Output (Min)
Texas Instruments LM3673TL-ADJ/NOPB	5-WFBGA DSBGA	Buck	1.1 V	3.3 V	Step-Down	1.08 mm	5-DSBGA	1.41 mm	2.7 V	Yes	1	85 °C	-30 °C	5.5 V	350 mA	Surface Mount	2 MHz	Positive	Adjustable
Texas Instruments LM3673TL-1.875/NOPB	5-WFBGA DSBGA	Buck	1.875 V		Step-Down	1.08 mm	5-DSBGA	1.41 mm	2.7 V	Yes	1	85 °C	-30 °C	5.5 V	350 mA	Surface Mount	2 MHz	Positive	Fixed
Texas Instruments LM3673TLX-1.5/NOPB	5-WFBGA DSBGA	Buck	1.5 V		Step-Down	1.08 mm	5-DSBGA	1.41 mm	2.7 V	Yes	1	85 °C	-30 °C	5.5 V	350 mA	Surface Mount	2 MHz	Positive	Fixed
Texas Instruments LM3673TL-1.5/NOPB	5-WFBGA DSBGA	Buck	1.5 V		Step-Down	1.08 mm	5-DSBGA	1.41 mm	2.7 V	Yes	1	85 °C	-30 °C	5.5 V	350 mA	Surface Mount	2 MHz	Positive	Fixed
Texas Instruments LM3673TL-1.5EV															350 mA		2 MHz		Non-Isolated	Board(s)	Fully Populated	1	1 count	LM3673	2.7 V	5.5 V	Board	Buck	1.5 V	DC/DC Step Down

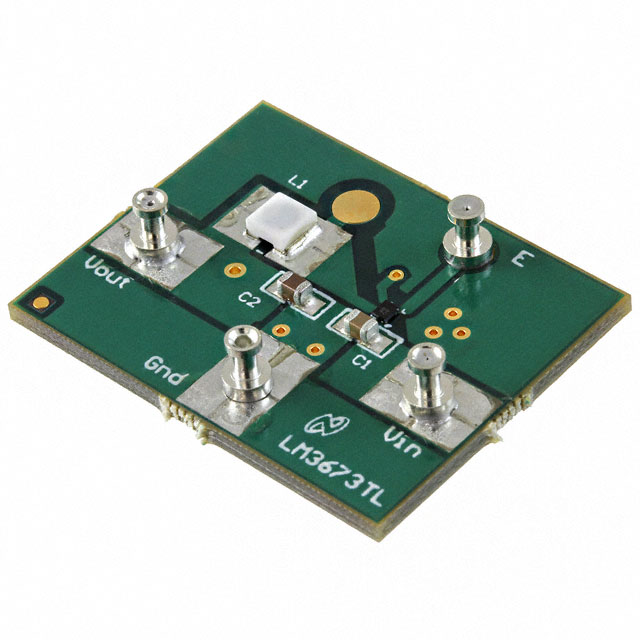

Texas Instruments LM3673TL-ADJEV				3.3 V											350 mA		2 MHz		Non-Isolated	Board(s)	Fully Populated	1	1 count	LM3673	2.7 V	5.5 V	Board	Buck		DC/DC Step Down	1.1 V
Texas Instruments LM3673TL-1.2/NOPB	5-WFBGA DSBGA	Buck	1.2 V		Step-Down	1.08 mm	5-DSBGA	1.41 mm	2.7 V	Yes	1	85 °C	-30 °C	5.5 V	350 mA	Surface Mount	2 MHz	Positive	Fixed
Texas Instruments LM3673TLX-1.8/NOPB	5-WFBGA DSBGA	Buck	1.8 V		Step-Down	1.08 mm	5-DSBGA	1.41 mm	2.7 V	Yes	1	85 °C	-30 °C	5.5 V	350 mA	Surface Mount	2 MHz	Positive	Fixed
Texas Instruments LM3673TLX-1.5/NOPB	5-WFBGA DSBGA	Buck	1.5 V		Step-Down	1.08 mm	5-DSBGA	1.41 mm	2.7 V	Yes	1	85 °C	-30 °C	5.5 V	350 mA	Surface Mount	2 MHz	Positive	Fixed
Texas Instruments LM3673TLX-ADJ/NOPB	5-WFBGA DSBGA	Buck	1.1 V	3.3 V	Step-Down	1.08 mm	5-DSBGA	1.41 mm	2.7 V	Yes	1	85 °C	-30 °C	5.5 V	350 mA	Surface Mount	2 MHz	Positive	Adjustable
