TLC554 Series

Catalog

IC ADC 8BIT FLASH 24TSSOP

Part	Number of Inputs	Mounting Type	Voltage - Supply, Digital	Data Interface	Architecture	Sampling Rate (Per Second)	Number of A/D Converters	Package Name	Number of Bits	Input Type	Package Width	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Reference Type	Ratio - ADC	Ratio - S/H	Configuration	Voltage - Supply, Analog	Supplied Contents	Input Voltage (Min)	Input Voltage (Max)	Utilized IC / Part	Contents	Power (Typ)
Texas Instruments TLC5540CPWR	1	Surface Mount	5 V	Parallel	Flash	40 MHz	1 count	24-TSSOP	8 bits	Single Ended	4.4 mm	0.173 in	70 °C	0 °C	External	1	1	S/H-ADC	5 V
Texas Instruments TLC5540CNSR	1	Surface Mount	5 V	Parallel	Flash	40 MHz	1 count	24-SO 24-SOIC	8 bits	Single Ended	5.3 mm	0.209 in	70 °C	0 °C	External	1	1	S/H-ADC	5 V
Texas Instruments TLC5540IPWG4	1	Surface Mount	5 V	Parallel	Flash	40 MHz	1 count	24-TSSOP	8 bits	Single Ended	4.4 mm	0.173 in	85 °C	-40 °C	External	1	1	S/H-ADC	5 V
Texas Instruments TLC5540CPWRG4	1	Surface Mount	5 V	Parallel	Flash	40 MHz	1 count	24-TSSOP	8 bits	Single Ended	4.4 mm	0.173 in	70 °C	0 °C	External	1	1	S/H-ADC	5 V

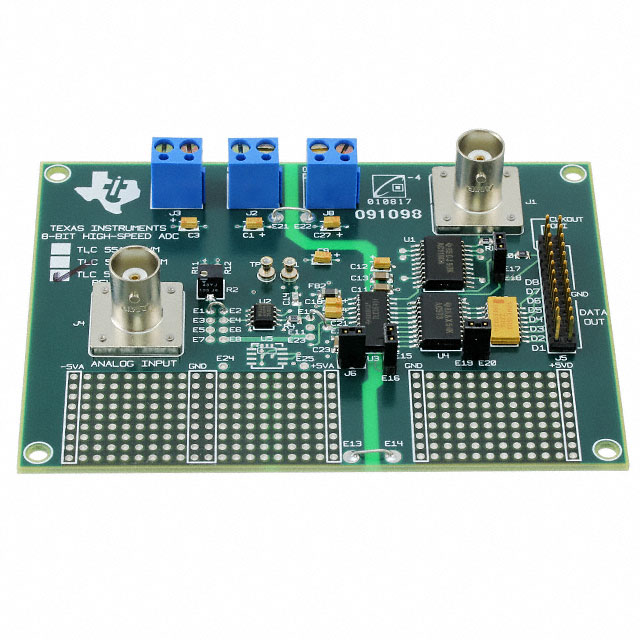

Texas Instruments TLC5540EVM				Parallel		40 MHz	1 count		8 bits											Board(s)	0 mV	5 V	TLC5540	Board	85 mW
Texas Instruments TLC5540IPWRG4	1	Surface Mount	5 V	Parallel	Flash	40 MHz	1 count	24-TSSOP	8 bits	Single Ended	4.4 mm	0.173 in	85 °C	-40 °C	External	1	1	S/H-ADC	5 V
