OPA2188 Series

Automotive-Qualified 0.03µV/°C Drift, 6µV Vos, Low-Noise, RRO, 36V, Zero-Drift Op Amp

Catalog

Automotive-Qualified 0.03µV/°C Drift, 6µV Vos, Low-Noise, RRO, 36V, Zero-Drift Op Amp

Part	Voltage - Input Offset	Voltage - Supply Span (Max)	Current - Input Bias	Amplifier Type	Package Name	Voltage - Supply Span (Min)	Current - Output / Channel	Package Width	Package Length	Gain Bandwidth Product	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Current - Supply	Slew Rate	Output Type	Number of Circuits	Qualification	Grade
Texas Instruments OPA2188AIDGKT	6 µV	36 V	160 pA	Zero-Drift	8-TSSOP 8-MSOP 8-VSSOP	4 V	18 mA	3 mm	0.118 in	2 MHz	Surface Mount	-40 °C	105 °C	415 µA	0.8 V/µs	Rail-to-Rail	2
Texas Instruments OPA2188AID	6 µV	36 V	160 pA	Zero-Drift	8-SOIC	4 V	18 mA	3.9 mm	0.154 in	2 MHz	Surface Mount	-40 °C	105 °C	415 µA	0.8 V/µs	Rail-to-Rail	2
Texas Instruments OPA2188AIDGKR	6 µV	36 V	160 pA	Zero-Drift	8-TSSOP 8-MSOP 8-VSSOP	4 V	18 mA	3 mm	0.118 in	2 MHz	Surface Mount	-40 °C	105 °C	415 µA	0.8 V/µs	Rail-to-Rail	2
Texas Instruments OPA2188AQDGKRQ1	6 µV	36 V	160 pA	Zero-Drift	8-TSSOP 8-MSOP 8-VSSOP	4 V	18 mA	3 mm	0.118 in	2 MHz	Surface Mount	-40 °C	125 °C	450 µA	0.8 V/µs	Rail-to-Rail	2	AEC-Q100	Automotive

Catalog

Automotive-Qualified 0.03µV/°C Drift, 6µV Vos, Low-Noise, RRO, 36V, Zero-Drift Op Amp

Description

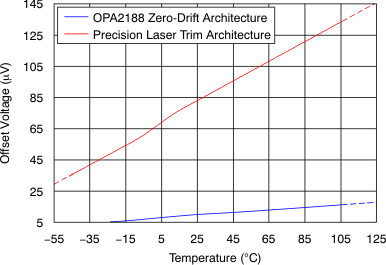

The OPA2188 operational amplifier uses TI proprietary auto-zeroing techniques to provide low offset voltage (25 µV, maximum), and near zero-drift over time and temperature. This miniature, high-precision, low quiescent current amplifier offers high input impedance and rail-to-rail output swing within 15 mV of the rails. The input common-mode range includes the negative rail. Either single or dual supplies can be used in the range of 4 V to 36 V (±2 V to ±18 V). The OPA2188 device is available in MSOP-8 and SO-8 packages. The device is specified for operation from –40°C to +105°C. The OPA2188 operational amplifier uses TI proprietary auto-zeroing techniques to provide low offset voltage (25 µV, maximum), and near zero-drift over time and temperature. This miniature, high-precision, low quiescent current amplifier offers high input impedance and rail-to-rail output swing within 15 mV of the rails. The input common-mode range includes the negative rail. Either single or dual supplies can be used in the range of 4 V to 36 V (±2 V to ±18 V). The OPA2188 device is available in MSOP-8 and SO-8 packages. The device is specified for operation from –40°C to +105°C.
