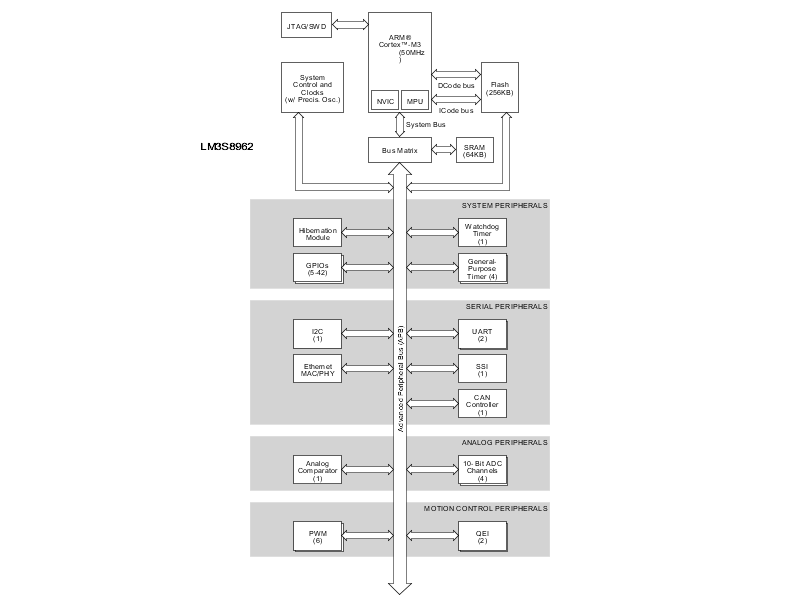

LM3S8962 Series

Catalog

IC MCU 32BIT 256KB FLASH 108BGA

Part	Core Processor	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Number of I/O	Core Size (Bit Width)	Connectivity	RAM Size Depth	RAM Size Width	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	A/D Channels	A/D Resolution (bits)	Oscillator Type	Speed	Peripherals	Program Memory Type	Package / Case	Package Length	Package Name	Package Width	Program Memory Width	Program Memory Depth	Program Memory Size	Core Configuration
Texas Instruments LM3S8962-IBZ50-A2	ARM® Cortex®-M3	2.25 V	2.75 V	42	32 Bit	CANbus Ethernet I2C IrDA Microwire QEI SPI SSI UART USART	64 K	8 bit	Surface Mount	85 °C	-40 °C	4 count	10 bit	Internal	50 MHz	Brown-out Detect POR PWM Reset WDT	FLASH	108-LFBGA	10 mm	108-BGA	10 mm	8 bit	256 K	256 KB	Single-Core
Texas Instruments LM3S8962-EQC50-A2T	ARM® Cortex®-M3	2.25 V	2.75 V	42	32 Bit	CANbus Ethernet I2C IrDA Microwire QEI SPI SSI UART USART	64 K	8 bit	Surface Mount	105 °C	-40 °C	4 count	10 bit	Internal	50 MHz	Brown-out Detect POR PWM Reset WDT	FLASH	100-LQFP	14 mm	100-LQFP	14 mm	8 bit	256 K	256 KB	Single-Core
Texas Instruments LM3S8962-IQC50-A2T	ARM® Cortex®-M3	2.25 V	2.75 V	42	32 Bit	CANbus Ethernet I2C IrDA Microwire QEI SPI SSI UART USART	64 K	8 bit	Surface Mount	85 °C	-40 °C	4 count	10 bit	Internal	50 MHz	Brown-out Detect POR PWM Reset WDT	FLASH	100-LQFP	14 mm	100-LQFP	14 mm	8 bit	256 K	256 KB	Single-Core
Texas Instruments LM3S8962-IQC50-A2	ARM® Cortex®-M3	2.25 V	2.75 V	42	32 Bit	CANbus Ethernet I2C IrDA Microwire QEI SPI SSI UART USART	64 K	8 bit	Surface Mount	85 °C	-40 °C	4 count	10 bit	Internal	50 MHz	Brown-out Detect POR PWM Reset WDT	FLASH	100-LQFP	14 mm	100-LQFP	14 mm	8 bit	256 K	256 KB	Single-Core
Texas Instruments LM3S8962-EQC50-A2	ARM® Cortex®-M3	2.25 V	2.75 V	42	32 Bit	CANbus Ethernet I2C IrDA Microwire QEI SPI SSI UART USART	64 K	8 bit	Surface Mount	105 °C	-40 °C	4 count	10 bit	Internal	50 MHz	Brown-out Detect POR PWM Reset WDT	FLASH	100-LQFP	14 mm	100-LQFP	14 mm	8 bit	256 K	256 KB	Single-Core
