BQ24725 Series

SMBus 2-4 cell Buck battery charge controller with N-Channel power MOSFET selector

Catalog

SMBus 2-4 cell Buck battery charge controller with N-Channel power MOSFET selector

Part	Supplied Contents	Contents	Type	Embedded	Primary Attributes	Primary Attributes - Cell Chemistry	Cell Count Minimum	Cell Count Maximum	Current	Function	Utilized IC / Part	Mounting Type	Battery Pack Voltage (Max)	Battery Chemistry	Fault Protection	Number of Cells (Max)	Number of Cells (Min)	Package / Case	Current - Charging	Voltage - Supply (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Interface	Primary Attributes (Max)	Primary Attributes (Min)

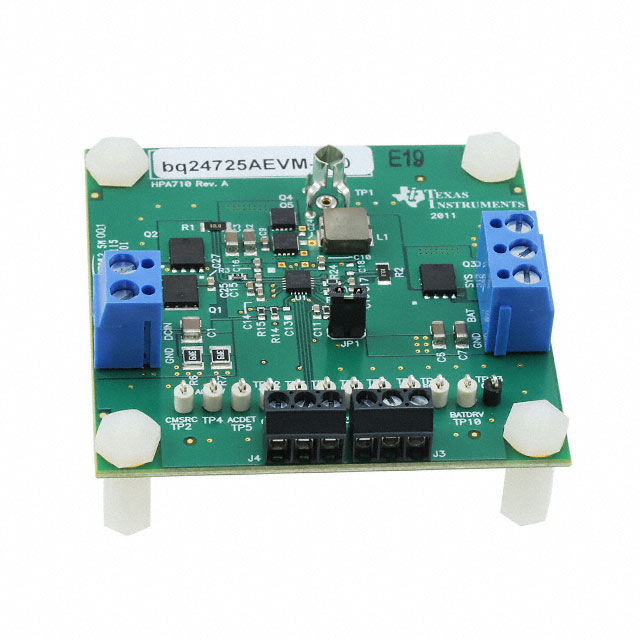

Texas Instruments BQ24725AEVM-710	Board(s)	Board	Power Management	No	1 ~ 4 Cells-Li-Ion Up to 4A Up to	Li-Ion	1	4	4 A	Battery Charger	BQ24725A
Texas Instruments BQ24725RGRR												Surface Mount	19.2 V	Lithium Ion	Over Current Over Voltage Short Circuit	4	2	20-VFQFN Exposed Pad	Constant Programmable	24 V	125 °C	0 °C	3.5 mm	20-VQFN	3.5 mm	I2C
Texas Instruments BQ24725EVM-542	Board(s)	Board	Power Management	No	Li-Ion / Li-Pol (2 ~ 4 Cells)					Battery Charger	BQ24725																4 Cells	2 Cells
Texas Instruments BQ24725RGRT												Surface Mount	19.2 V	Lithium Ion	Over Current Over Voltage Short Circuit	4	2	20-VFQFN Exposed Pad	Constant Programmable	24 V	125 °C	0 °C	3.5 mm	20-VQFN	3.5 mm	I2C

Catalog

SMBus 2-4 cell Buck battery charge controller with N-Channel power MOSFET selector

Description

The bq24725 is a high-efficiency, synchronous battery charger, offering low component count for space-constraint, multi-chemistry battery charging applications. The bq24725 uses two charge pumps to separately drive n-channel MOSFETs (ACFET, RBFET and BATFET) for automatic system power source selection. SMBus controlled input current, charge current, and charge voltage DACs allow for high regulation accuracies that can be programmed by the system power management micro-controller. The bq24725 uses internal input current register or external ILIM pin to throttle down PWM modulation to reduce the charge current. The bq24725 charges two, three or four series Li+ cells, and is available in a 20-pin, 3.5 × 3.5 mm2QFN package. The bq24725 is a high-efficiency, synchronous battery charger, offering low component count for space-constraint, multi-chemistry battery charging applications. The bq24725 uses two charge pumps to separately drive n-channel MOSFETs (ACFET, RBFET and BATFET) for automatic system power source selection. SMBus controlled input current, charge current, and charge voltage DACs allow for high regulation accuracies that can be programmed by the system power management micro-controller. The bq24725 uses internal input current register or external ILIM pin to throttle down PWM modulation to reduce the charge current. The bq24725 charges two, three or four series Li+ cells, and is available in a 20-pin, 3.5 × 3.5 mm2QFN package.
