ADS7924 Series
Manufacturer: Texas Instruments
Beta
⌘K

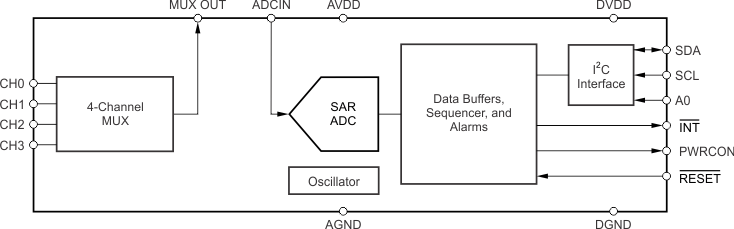

12-BIT 4-CH MUX-INPUT SAR ADC WITH INTELLIGENT SYSTEM POWER CONTROL
| Part | Data Interface | Mounting Type | Architecture | Number of Bits | Voltage - Supply, Digital (Max) | Voltage - Supply, Digital (Min) | Reference Type | Number of A/D Converters | Package Length | Package Name | Package Width | Number of Inputs | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Input Type | Configuration | Sampling Rate (Per Second) | Voltage - Supply, Analog (Max) | Voltage - Supply, Analog (Min) | Supplied Contents | Contents | Input Range | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | I2C | Surface Mount | SAR | 12 bits | 5.5 V | 1.65 V | Supply | 1 count | 3 mm | 16-WQFN | 3 mm | 4 | -40 °C | 85 °C | 16-WFQFN Exposed Pad | Single Ended | MUX-ADC | 100 kHz | 5.5 V | 2.2 V | ||||
 Texas Instruments | I2C Serial | 12 bits | 1 count | 100 kHz | Board(s) | Board | 0 ~ Vdd | ADS7924 | ||||||||||||||||
 Texas Instruments | I2C | Surface Mount | SAR | 12 bits | 5.5 V | 1.65 V | Supply | 1 count | 3 mm | 16-WQFN | 3 mm | 4 | -40 °C | 85 °C | 16-WFQFN Exposed Pad | Single Ended | MUX-ADC | 100 kHz | 5.5 V | 2.2 V | ||||
 Texas Instruments | I2C Serial | 12 bits | 1 count | 100 kHz | Board(s) | Board | 0 ~ Vdd | ADS7924 |
