LM3535 Series
Manufacturer: Texas Instruments
Beta
⌘K

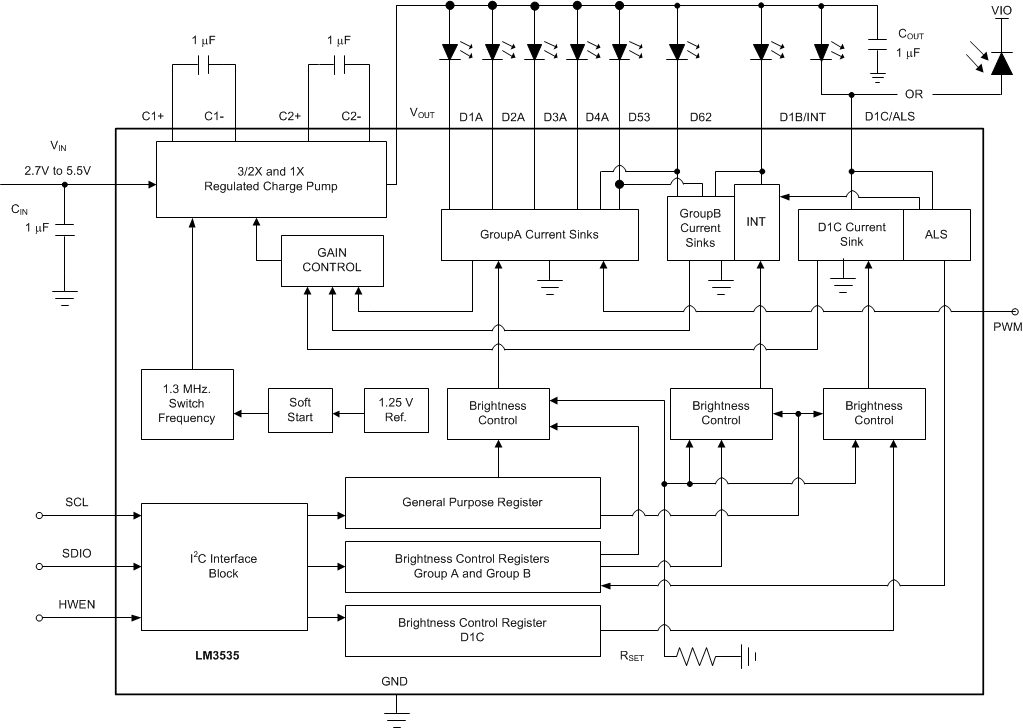

MULTI-DISPLAY LED DRIVER WITH AMBIENT LIGHT SENSING AND DYNAMIC BACKLIGHT CONTROL COMPATIBILITY
| Part | Voltage - Output (Min) | Voltage - Output (Max) | Voltage - Supply (Max) | Frequency | Topology | Package / Case | Internal Switch(s) | Package Name | Operating Temperature (Max) | Operating Temperature (Min) | Type | Dimming | Mounting Type | Number of Outputs | Current - Output / Channel | Voltage - Supply (Min) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 2 V | 4 V | 5.5 V | 1.33 MHz | Switched Capacitor (Charge Pump) | 20-WFBGA DSBGA | Yes | 20-DSBGA | 85 °C | -30 °C | DC DC Regulator | PWM | Surface Mount | 8 | 25 mA | 2.7 V | Backlight |
 Texas Instruments | 2 V | 4 V | 5.5 V | 1.33 MHz | Switched Capacitor (Charge Pump) | 20-WFBGA DSBGA | Yes | 20-DSBGA | 85 °C | -30 °C | DC DC Regulator | PWM | Surface Mount | 8 | 25 mA | 2.7 V | Backlight |
Texas Instruments | 2 V | 4 V | 5.5 V | 1.33 MHz | Switched Capacitor (Charge Pump) | 20-WFBGA DSBGA | Yes | 20-DSBGA | 85 °C | -30 °C | DC DC Regulator | PWM | Surface Mount | 8 | 25 mA | 2.7 V | Backlight |
Texas Instruments | 2 V | 4 V | 5.5 V | 1.33 MHz | Switched Capacitor (Charge Pump) | 20-WFBGA DSBGA | Yes | 20-DSBGA | 85 °C | -30 °C | DC DC Regulator | PWM | Surface Mount | 8 | 25 mA | 2.7 V | Backlight |
