LM36274 Series
Manufacturer: Texas Instruments
Beta
⌘K

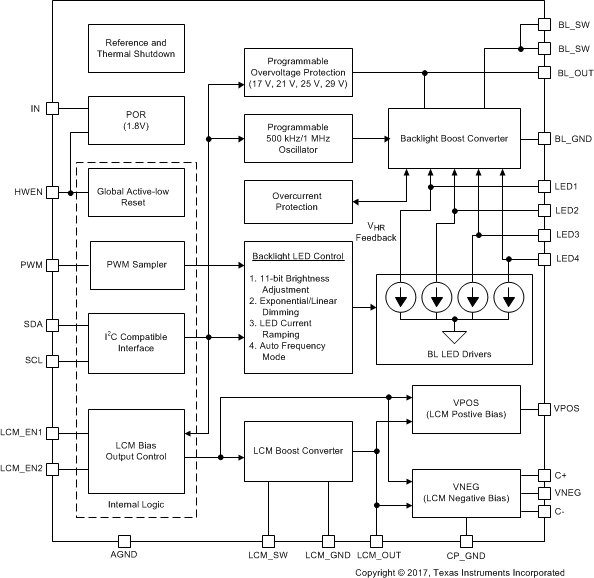

INTEGRATED BACKLIGHT DRIVER WITH LCD BIAS
| Part | Dimming | Voltage - Supply (Max) | Type | Applications | Number of Outputs | Current - Output / Channel | Topology | Voltage - Output | Mounting Type | Internal Switch(s) | Voltage - Supply (Min) | Package / Case | Package Name | Package Width | Package Length | Operating Temperature (Max) | Operating Temperature (Min) | Total Output Count | Output Type | Non-Isolated Output Count | Supplied Contents | Utilized IC / Part | Contents | Voltage - Input (Maximum) | Voltage - Input (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Analog I2C PWM | 5 V | DC DC Regulator | Backlight | 4 | 30 mA | Step-Up (Boost) | 29 V | Surface Mount | Yes | 2.7 V | 24-UFBGA DSBGA | 24-DSBGA | 1.89 mm | 2.59 mm | 85 °C | -40 °C | ||||||||
 Texas Instruments | 4 count | Non-Isolated | 4 | Board(s) | LM36274 | Board | 5 V | 2.7 V |
