LM5114 Series

Catalog

7.6-A/1.3-A SINGLE CHANNEL GATE DRIVER WITH 4-V UVLO AND SPLIT OUTPUTS

Part	Package Name	Current - Peak Output (Sink)	Current - Peak Output (Source)	Package / Case	Logic Voltage - VIH	Logic Voltage - VIL	Input Type	Fall Time (Typ)	Rise Time (Typ)	Number of Drivers	Channel Type	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Driven Configuration	Gate Channel	Gate Type	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Length	Total Output Count	Output Type	Non-Isolated Output Count	Supplied Contents	Board Type	Main Purpose	Frequency - Switching	Current - Output	Utilized IC / Part	Voltage - Output	Contents	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Regulator Topology
Texas Instruments LM5114BMF/S7003110	SOT-23-6	7.6 A	1.3 A	SOT-23-6	2.4 V	0.8 V	Inverting Non-Inverting	12.5 ns	82 ns	1	Single	Surface Mount	12.6 V	4 V	Low-Side	N-Channel	MOSFET N-Channel MOSFET	125 °C	-40 °C
Texas Instruments LM5114ASDX/NOPB	6-WSON	7.6 A	1.3 A	6-WDFN Exposed Pad			Inverting Non-Inverting	12.5 ns	82 ns	1	Single	Surface Mount	12.6 V	4 V	Low-Side	N-Channel	MOSFET N-Channel MOSFET	125 °C	-40 °C	3 mm	3 mm
Texas Instruments LM5114BSD/NOPB	6-WSON	7.6 A	1.3 A	6-WDFN Exposed Pad	2.4 V	0.8 V	Inverting Non-Inverting	12.5 ns	82 ns	1	Single	Surface Mount	12.6 V	4 V	Low-Side	N-Channel	MOSFET N-Channel MOSFET	125 °C	-40 °C	3 mm	3 mm

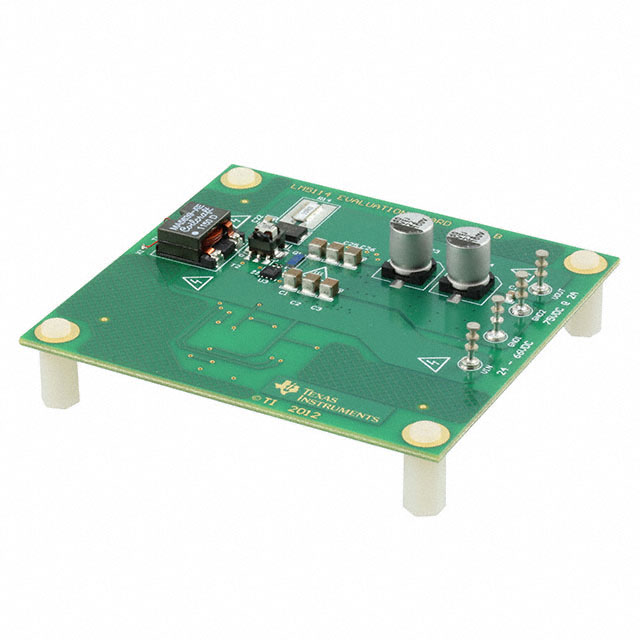

Texas Instruments LM5114BSDEVAL/NOPB																						1	Non-Isolated	1 count	Board(s)	Fully Populated	DC/DC Step Up	500 kHz	2 A	LM5114	75 V	Board	66 V	24 V	Boost
Texas Instruments LM5114BSDX/NOPB	6-WSON	7.6 A	1.3 A	6-WDFN Exposed Pad	2.4 V	0.8 V	Inverting Non-Inverting	12.5 ns	82 ns	1	Single	Surface Mount	12.6 V	4 V	Low-Side	N-Channel	MOSFET N-Channel MOSFET	125 °C	-40 °C	3 mm	3 mm
Texas Instruments LM5114BMFX/NOPB	SOT-23-6	7.6 A	1.3 A	SOT-23-6	2.4 V	0.8 V	Inverting Non-Inverting	12.5 ns	82 ns	1	Single	Surface Mount	12.6 V	4 V	Low-Side	N-Channel	MOSFET N-Channel MOSFET	125 °C	-40 °C
Texas Instruments LM5114AMFX/S7003103	SOT-23-6	7.6 A	1.3 A	SOT-23-6			Inverting Non-Inverting	12.5 ns	82 ns	1	Single	Surface Mount	12.6 V	4 V	Low-Side	N-Channel	MOSFET N-Channel MOSFET	125 °C	-40 °C
Texas Instruments LM5114AMF/NOPB	SOT-23-6	7.6 A	1.3 A	SOT-23-6			Inverting Non-Inverting	12.5 ns	82 ns	1	Single	Surface Mount	12.6 V	4 V	Low-Side	N-Channel	MOSFET	125 °C	-40 °C
Texas Instruments LM5114BMF/S7003094	SOT-23-6	7.6 A	1.3 A	SOT-23-6	2.4 V	0.8 V	Inverting Non-Inverting	12.5 ns	82 ns	1	Single	Surface Mount	12.6 V	4 V	Low-Side	N-Channel	IGBT MOSFET N-Channel MOSFET	125 °C	-40 °C
Texas Instruments LM5114AMFX/NOPB	SOT-23-6	7.6 A	1.3 A	SOT-23-6			Inverting Non-Inverting	12.5 ns	82 ns	1	Single	Surface Mount	12.6 V	4 V	Low-Side	N-Channel	MOSFET N-Channel MOSFET	125 °C	-40 °C
