TMP422 Series

Dual remote and local temperature sensor with N-factor and series-R correction

Catalog

Dual remote and local temperature sensor with N-factor and series-R correction

Part	Sensing Temperature - Local (Max)	Sensing Temperature - Local (Min)	Mounting Type	Package / Case	Qualification	Accuracy - Lowest (Remote)	Accuracy - Highest (Remote)	Accuracy - Highest (Local)	Accuracy - Lowest (Local)	Package Name	Resolution	Test Condition (Remote) Maximum	Test Condition (Remote) Extended Maximum	Test Condition (Local) Maximum	Test Condition (Local) Extended Minimum	Test Condition (Local) Minimum	Test Condition (Local) Extended Maximum	Test Condition (Remote) Extended Minimum	Test Condition (Remote) Minimum	Output Type	Features	Sensing Temperature - Remote (Min)	Sensing Temperature - Remote (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Sensor Type	Grade	Accuracy - Highest	Accuracy - Lowest	Test Condition (Alternate) Maximum	Test Condition (Primary) Minimum	Test Condition (Alternate) Minimum	Test Condition (Primary) Maximum	Test Condition (Min)	Test Condition (Max)
Texas Instruments TMP422AQDCNTQ1	127 °C	-40 °C	Surface Mount	SOT-23-8	AEC-Q100	5 °C	1 °C	1.5 °C	2.5 °C	SOT-23-8	12 b	85 °C	125 °C	85 °C	-40 °C	15 °C	125 °C	-40 °C	15 °C	I2C SMBus	One-Shot Output Switch Programmable Limit Shutdown Mode	-40 °C	127 °C	125 °C	-40 °C	5.5 V	2.7 V	Digital Local/Remote	Automotive
Texas Instruments TMP422AMDCNTEP	125 °C	-40 °C	Surface Mount	SOT-23-8						SOT-23-8	11 b									SMBus	One-Shot Output Switch Programmable Limit Shutdown Mode	-64 °C	191 °C	125 °C	-55 °C	5.5 V	2.7 V	Digital Local/Remote		1.5 °C	2.5 °C	125 ¯C	15 °C	-40 °C	85 °C
Texas Instruments TMP422AIDCNRG4	125 °C	-40 °C	Surface Mount	SOT-23-8						SOT-23-8	11 b									SMBus	One-Shot Output Switch Programmable Limit Shutdown Mode	-64 °C	191 °C	125 °C 127 °C	-55 °C -40 °C	5.5 V	2.7 V	Digital Local/Remote		1.5 °C	2.5 °C	125 ¯C	15 °C	-40 °C	85 °C
Texas Instruments TMP422AQDCNRQ1	125 °C	-40 °C	Surface Mount	SOT-23-8	AEC-Q100					SOT-23-8	12 b									I2C SMBus	Programmable Limit	-40 °C	125 °C	125 °C	-40 °C	5.5 V	2.7 V	Digital Local/Remote	Automotive	1 °C	3 °C					-40 °C	125 °C
Texas Instruments TMP422AIDCNR	125 °C	-40 °C	Surface Mount	SOT-23-8						SOT-23-8	12 b									SMBus	One-Shot Output Switch Programmable Limit Shutdown Mode	-64 °C	191 °C	125 °C 127 °C	-55 °C -40 °C	5.5 V	2.7 V	Digital Local/Remote		1.5 °C	2.5 °C	125 ¯C	15 °C	-40 °C	85 °C
Texas Instruments TMP422AIDCNTG4	125 °C	-40 °C	Surface Mount	SOT-23-8						SOT-23-8	11 b									SMBus	One-Shot Output Switch Programmable Limit Shutdown Mode	-64 °C	191 °C	125 °C 127 °C	-55 °C -40 °C	5.5 V	2.7 V	Digital Local/Remote		1.5 °C	2.5 °C	125 ¯C	15 °C	-40 °C	85 °C
Texas Instruments TMP422AIDCNT	125 °C	-40 °C	Surface Mount	SOT-23-8						SOT-23-8	11 b									SMBus	One-Shot Output Switch Programmable Limit Shutdown Mode	-64 °C	191 °C	125 °C 127 °C	-55 °C -40 °C	5.5 V	2.7 V	Digital Local/Remote		1.5 °C	2.5 °C	125 ¯C	15 °C	-40 °C	85 °C

Catalog

Dual remote and local temperature sensor with N-factor and series-R correction

Description

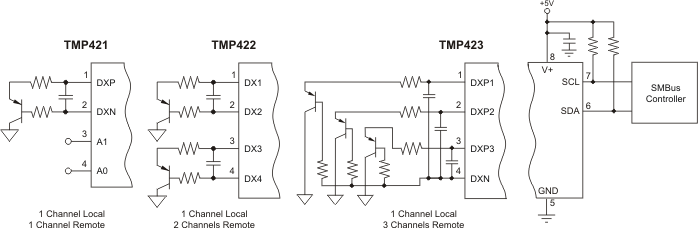

The TMP421, TMP422, and TMP423 are remote temperature sensor monitors with a built-in local temperature sensor. The remote temperature sensor diode-connected transistors are typically low-cost, NPN- or PNP-type transistors or diodes that are an integral part of microcontrollers, microprocessors, or FPGAs. Remote accuracy is ±1°C for multiple IC manufacturers, with no calibration needed. The two-wire serial interface accepts SMBus write byte, read byte, send byte, and receive byte commands to configure the device. The TMP421, TMP422, and TMP423 include series resistance cancellation, programmable non-ideality factor, wide remote temperature measurement range (up to +150°C), and diode fault detection. The TMP421, TMP422, and TMP423 are all available in a SOT23-8 package. The TMP421C is also available in a DSBGA (WCSP) package. The TMP421, TMP422, and TMP423 are remote temperature sensor monitors with a built-in local temperature sensor. The remote temperature sensor diode-connected transistors are typically low-cost, NPN- or PNP-type transistors or diodes that are an integral part of microcontrollers, microprocessors, or FPGAs. Remote accuracy is ±1°C for multiple IC manufacturers, with no calibration needed. The two-wire serial interface accepts SMBus write byte, read byte, send byte, and receive byte commands to configure the device. The TMP421, TMP422, and TMP423 include series resistance cancellation, programmable non-ideality factor, wide remote temperature measurement range (up to +150°C), and diode fault detection. The TMP421, TMP422, and TMP423 are all available in a SOT23-8 package. The TMP421C is also available in a DSBGA (WCSP) package.
