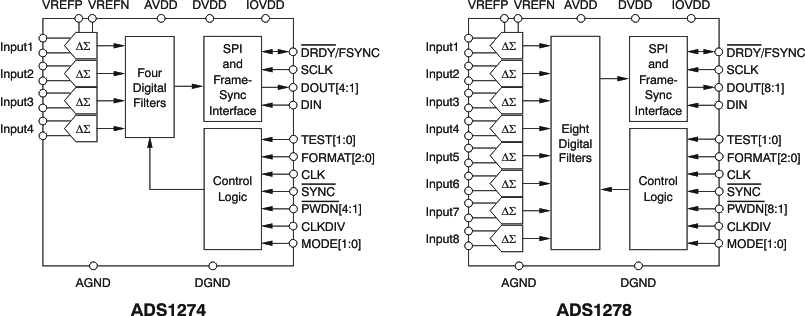

ADS1274 Series

Catalog

EVAL MODULE FOR ADS1274 5CH

Part	Supplied Contents	Sampling Rate (Per Second)	Data Interface	Utilized IC / Part	Number of Bits	Power (Typ)	Number of A/D Converters	Contents	Input Range	Voltage - Supply, Analog	Input Type	Reference Type	Architecture	Number of Inputs	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Configuration	Package / Case	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Package Width	Package Name	Package Length
Texas Instruments ADS1274EVM	Board(s)	128 kHz	SPI	ADS1274	24 bits	31 mW	4 count	Board	±VREF
Texas Instruments ADS1274IPAPTG4		144 kHz	SPI		24 bits		1 count			5 V	Differential	External	Sigma-Delta	4	125 °C	-40 °C	Surface Mount	ADC	64-PowerTQFP	1.95 V	1.65 V	10 mm	64-HTQFP	10 mm
Texas Instruments ADS1274IPAPT		144 kHz	SPI		24 bits		4 count			5 V	Differential	External	Sigma-Delta	4	125 °C	-40 °C	Surface Mount	ADC	64-PowerTQFP	1.95 V	1.65 V	10 mm	64-HTQFP	10 mm
Texas Instruments ADS1274IPAPR		144 kHz	SPI		24 bits		4 count			5 V	Differential	External	Sigma-Delta	4	125 °C	-40 °C	Surface Mount	ADC	64-PowerTQFP	1.95 V	1.65 V	10 mm	64-HTQFP	10 mm
Texas Instruments ADS1274EVM-PDK	Board(s)	128 kHz	SPI	ADS1274	24 bits	31 mW	4 count	Board	±VREF
