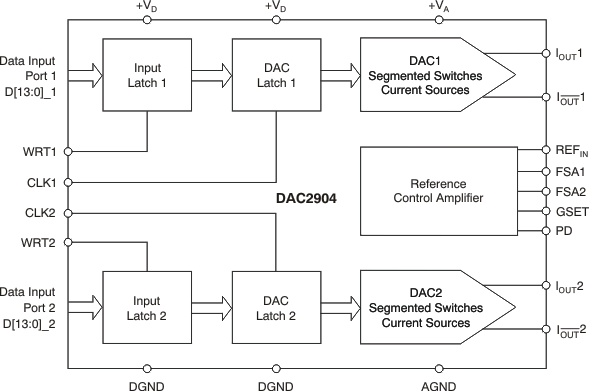

DAC2904 Series

Catalog

EVAL MOD FOR DAC2904

Part	Settling Time	Supplied Contents	Data Interface	Sampling Rate (Per Second)	DAC Type	Number of Bits	Number of DAC's	Contents	Utilized IC / Part	Operating Temperature (Min)	Operating Temperature (Max)	Settling Time (Typical)	Mounting Type	Reference Type	Package Length	Package Name	Package Width	INL (LSB) Tolerance	DNL (LSB) Tolerance	Number of D/A Converters	Architecture	Differential Output	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Output Type	Package / Case
Texas Instruments DAC2904-EVM	30 ns	Board(s)	Parallel	125 MHz	Current	14 bits	2	Board	DAC2904
Texas Instruments DAC2904IPFB			Parallel			14 bits				-40 °C	85 °C	30 ns	Surface Mount	External Internal	7 mm	48-TQFP	7 mm	5 LSB	4 LSB	2 count	Segmented DAC	Yes	5.5 V	3 V	3 V	5.5 V	Current - Unbuffered	48-TQFP
Texas Instruments DAC2904Y/1K			Parallel			14 bits				-40 °C	85 °C	30 ns	Surface Mount	External Internal	7 mm	48-TQFP	7 mm	5 LSB	4 LSB	2 count	Segmented DAC	Yes	5.5 V	3 V	3 V	5.5 V	Current - Unbuffered	48-TQFP
Texas Instruments DAC2904Y/250			Parallel			14 bits				-40 °C	85 °C	30 ns	Surface Mount	External Internal	7 mm	48-TQFP	7 mm	5 LSB	4 LSB	2 count	Segmented DAC	Yes	5.5 V	3 V	3 V	5.5 V	Current - Unbuffered	48-TQFP
Texas Instruments DAC2904Y/250G4			Parallel			14 bits				-40 °C	85 °C	30 ns	Surface Mount	External Internal	7 mm	48-TQFP	7 mm	5 LSB	4 LSB	2 count	Segmented DAC	Yes	5.5 V	3 V	3 V	5.5 V	Current - Unbuffered	48-TQFP
