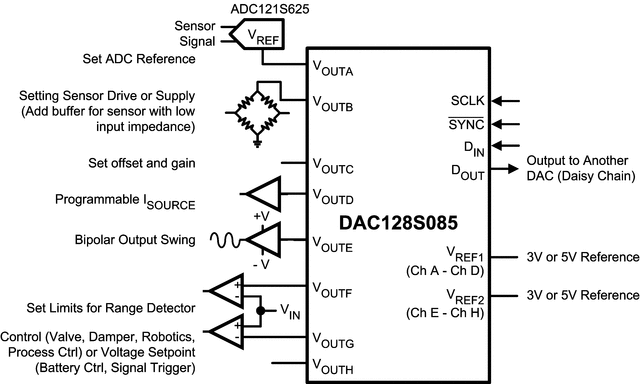

DAC128S085 Series

Catalog

IC DAC 12BIT V-OUT 16WQFN

Part	Reference Type	INL Positive Tolerance (LSB)	INL Negative Tolerance (LSB)	DNL Positive Tolerance (LSB)	INL (LSB) Tolerance	DNL Negative Tolerance (LSB)	Mounting Type	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Number of D/A Converters	Number of Bits	Settling Time	Architecture	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Package / Case	Differential Output	Data Interface
Texas Instruments DAC128S085CISQX	External	2 LSB	2 LSB	0.15 LSB	2 LSB	0.09 LSB	Surface Mount	2.7 V	5.5 V	8 count	12 bits	8.5 µs	String DAC	2.7 V	5.5 V	Voltage - Buffered	125 °C	-40 °C	4 mm	16-WQFN	4 mm	16-WFQFN Exposed Pad	No	DSP SPI
Texas Instruments DAC128S085CISQ/NOPB	External	2 LSB	2 LSB	0.15 LSB	2 LSB	0.09 LSB	Surface Mount	2.7 V	5.5 V	8 count	12 bits	8.5 µs	String DAC	2.7 V	5.5 V	Voltage - Buffered	125 °C	-40 °C	4 mm	16-WQFN	4 mm	16-WFQFN Exposed Pad	No	DSP SPI
Texas Instruments DAC128S085CISQ	External	2 LSB	2 LSB	0.15 LSB	2 LSB	0.09 LSB	Surface Mount	2.7 V	5.5 V	8 count	12 bits	8.5 µs	String DAC	2.7 V	5.5 V	Voltage - Buffered	125 °C	-40 °C	4 mm	16-WQFN	4 mm	16-WFQFN Exposed Pad	No	DSP SPI
Texas Instruments DAC128S085CISQX/NOPB	External	2 LSB	2 LSB	0.15 LSB	2 LSB	0.09 LSB	Surface Mount	2.7 V	5.5 V	8 count	12 bits	8.5 µs	String DAC	2.7 V	5.5 V	Voltage - Buffered	125 °C	-40 °C	4 mm	16-WQFN	4 mm	16-WFQFN Exposed Pad	No	DSP SPI
Texas Instruments DAC128S085CIMTX/NOPB	External	2 LSB	2 LSB	0.15 LSB	2 LSB	0.09 LSB	Surface Mount	2.7 V	5.5 V	8 count	12 bits	8.5 µs	String DAC	2.7 V	5.5 V	Voltage - Buffered	125 °C	-40 °C	4.4 mm	16-TSSOP	0.173 in		No	DSP SPI
Texas Instruments DAC128S085CIMTX	External	2 LSB	2 LSB	0.15 LSB	2 LSB	0.09 LSB	Surface Mount	2.7 V	5.5 V	8 count	12 bits	8.5 µs	String DAC	2.7 V	5.5 V	Voltage - Buffered	125 °C	-40 °C	4.4 mm	16-TSSOP	0.173 in		No	DSP SPI
Texas Instruments DAC128S085CIMT/NOPB	External	2 LSB	2 LSB	0.15 LSB	2 LSB	0.09 LSB	Surface Mount	2.7 V	5.5 V	8 count	12 bits	8.5 µs	String DAC	2.7 V	5.5 V	Voltage - Buffered	125 °C	-40 °C	4.4 mm	16-TSSOP	0.173 in		No	DSP SPI
Texas Instruments DAC128S085CIMT	External	2 LSB	2 LSB	0.15 LSB	2 LSB	0.09 LSB	Surface Mount	2.7 V	5.5 V	8 count	12 bits	8.5 µs	String DAC	2.7 V	5.5 V	Voltage - Buffered	125 °C	-40 °C	4.4 mm	16-TSSOP	0.173 in		No	DSP SPI
