LMV851 Series
Manufacturer: Texas Instruments
Beta
⌘K
SINGLE, 5.5-V, 8-MHZ, 62-MA OUTPUT CURRENT, LOW NOISE (11-NV/√HZ) OPERATIONAL AMPLIFIER
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply Span (Min) | Slew Rate | Number of Circuits | Gain Bandwidth Product | Current - Input Bias | Output Type | Amplifier Type | Current - Output / Channel | Current - Supply | Voltage - Supply Span (Max) | Mounting Type | Voltage - Input Offset | Package Name | Package / Case | Supplied Contents | Current - Supply (Main IC) | Board Type | Supply Configuration | Voltage - Supply (Single) Minimum | Voltage - Supply (Dual) Maximum (Magnitude) | Voltage - Supply (Single) Maximum | Voltage - Supply (Dual) Minimum (Magnitude) | Contents | Channels per IC (Single) | Channels per IC (Type) | Channels per IC (Count) | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 125 °C | -40 °C | 2.7 V | 4.5 V/µs | 1 | 8 MHz | 0.1 pA | Rail-to-Rail | General Purpose | 65 mA | 430 µA | 5.5 V | Surface Mount | 260 µV | SC-70-5 | 5-TSSOP SC-70-5 SOT-353 | |||||||||||||
 Texas Instruments | 125 °C | -40 °C | 2.7 V | 4.5 V/µs | 1 | 8 MHz | 0.1 pA | Rail-to-Rail | General Purpose | 65 mA | 430 µA | 5.5 V | Surface Mount | 260 µV | SC-70-5 | 5-TSSOP SC-70-5 SOT-353 | |||||||||||||
Texas Instruments | 125 °C | -40 °C | 2.7 V | 4.5 V/µs | 1 | 8 MHz | 0.1 pA | Rail-to-Rail | General Purpose | 65 mA | 430 µA | 5.5 V | Surface Mount | 260 µV | SC-70-5 | 5-TSSOP SC-70-5 SOT-353 | |||||||||||||

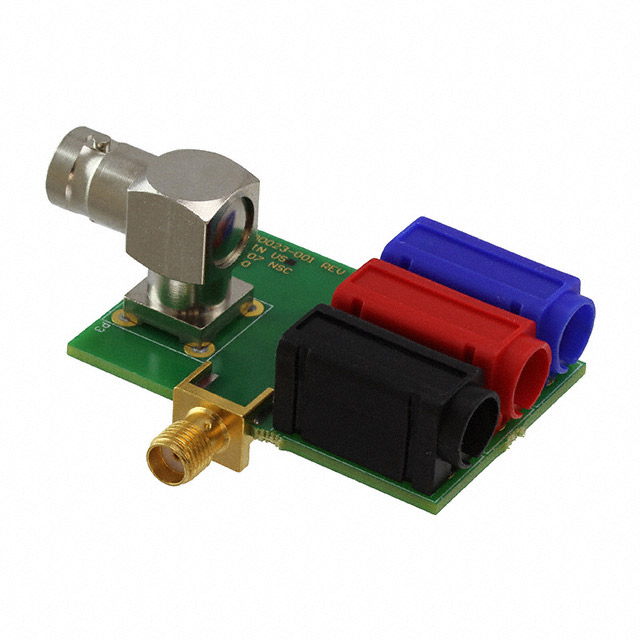

 Texas Instruments | 4.5 V/µs | 8 MHz | Rail-to-Rail Single-Ended | General Purpose Standard (General Purpose) | 65 mA | Board(s) | 0.00043 µA | Fully Populated | Dual Single | 2.7 V | 2.75 V | 5.5 V | 1.35 V | Board | 1 | Single | 1 | LMV851 |
