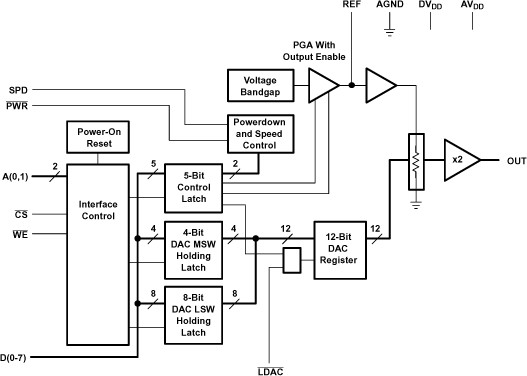

TLV5633 Series

Catalog

12-BIT DAC PARALLEL VOLTAGE OUT PGRMABLE INT REF SETTLING TIME, PWR CONSUMPTION, 8-BIT UC COMP INT

Part	Output Type	Number of D/A Converters	Differential Output	Voltage - Supply, Digital (Range 1) Minimum	Voltage - Supply, Digital (Additional)	Voltage - Supply, Digital (Range 1) Maximum	INL (LSB) Tolerance	DNL (LSB) Tolerance	Architecture	Settling Time	Number of Bits	Reference Type	Voltage - Supply, Analog (Typical)	Voltage - Supply, Analog (Additional)	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Data Interface	Package Name	Package Length	Package Width
Texas Instruments TLV5633IDW	Voltage - Buffered	1 count	No	2.7 V	5 V	3.3 V	1.2 LSB	0.3 LSB	String DAC	7 µs	12 bits	External Internal	5 V	5 V	2.7 V	3.3 V	-40 °C	85 °C	Surface Mount	Parallel	20-SOIC	0.295 in	7.5 mm
Texas Instruments TLV5633CPW	Voltage - Buffered	1 count	No	2.7 V	5 V	3.3 V	1.2 LSB	0.3 LSB	String DAC	7 µs	12 bits	External Internal	5 V	5 V	2.7 V	3.3 V	0 °C	70 °C	Surface Mount	Parallel	20-TSSOP	0.173 in	4.4 mm
Texas Instruments TLV5633IPW	Voltage - Buffered	1 count	No	2.7 V	5 V	3.3 V	1.2 LSB	0.3 LSB	String DAC	7 µs	12 bits	External Internal	5 V	5 V	2.7 V	3.3 V	-40 °C	85 °C	Surface Mount	Parallel	20-TSSOP	0.173 in	4.4 mm
Texas Instruments TLV5633CDW	Voltage - Buffered	1 count	No	2.7 V	5 V	3.3 V	1.2 LSB	0.3 LSB	String DAC	7 µs	12 bits	External Internal	5 V	5 V	2.7 V	3.3 V	0 °C	70 °C	Surface Mount	Parallel	20-SOIC	0.295 in	7.5 mm
