LMK01801 Series

Catalog

IC CLK BUF 1:8/1:6 3.1GHZ 48WQFN

Part	Package Width	Package Name	Package Length	Number of Circuits	Input	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Differential Input	Differential Output	Mounting Type	Ratio - Input:Output	Type	Frequency - Max	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Output	Supplied Contents	Function	Utilized IC / Part	Contents
Texas Instruments LMK01801BISQX/NOPB	7 mm	48-WQFN	7 mm	2	LVCMOS LVDS LVPECL RF Sinewave	3.15 V	3.45 V	Yes	Yes	Surface Mount	1:6 1:8	Divider Fanout Buffer (Distribution) Multiplexer	3.1 GHz	48-WFQFN Exposed Pad	-40 °C	85 °C	LVCMOS LVDS LVPECL
Texas Instruments LMK01801BISQ/NOPB	7 mm	48-WQFN	7 mm	2	LVCMOS LVDS LVPECL RF Sinewave	3.15 V	3.45 V	Yes	Yes	Surface Mount	1:6 1:8	Divider Fanout Buffer (Distribution) Multiplexer	3.1 GHz	48-WFQFN Exposed Pad	-40 °C	85 °C	LVCMOS LVDS LVPECL

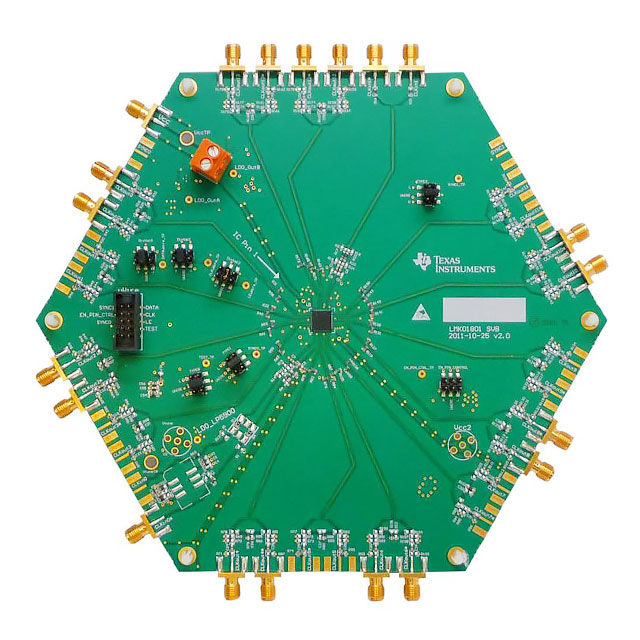

Texas Instruments LMK01801BEVAL/NOPB												Timing						Board(s) Cable(s)	Clock Divider	LMK01801	Board Cable
Texas Instruments LMK01801BISQE/NOPB	7 mm	48-WQFN	7 mm	2	LVCMOS LVDS LVPECL RF Sinewave	3.15 V	3.45 V	Yes	Yes	Surface Mount	1:6 1:8	Divider Fanout Buffer (Distribution) Multiplexer	3.1 GHz	48-WFQFN Exposed Pad	-40 °C	85 °C	LVCMOS LVDS LVPECL
