DRV3202 Series
Manufacturer: Texas Instruments
Beta
⌘K

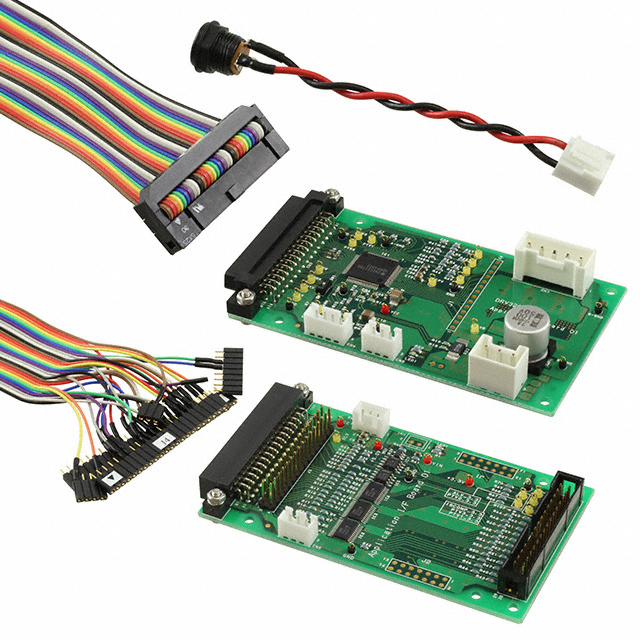

EVAL MODULE FOR DRV3202
| Part | Supplied Contents | Function | Contents | Utilized IC / Part | Type | Grade | Output Configuration Count | Output Configuration | Technology | Mounting Type | Package / Case | Motor Type - AC, DC | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Operating Temperature (Max) | Operating Temperature (Min) | Interface | Package Length | Package Name | Package Width | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | Driver Motor Controller | Board | DRV3202 | Power Management | ||||||||||||||||
 Texas Instruments | Controller - Commutation Direction Management | Automotive | 3 | Pre-Driver - Half Bridge Pre-Driver - Half Bridge (3) | NMOS | Surface Mount | 80-TQFP Exposed Pad | Brushless DC (BLDC) | 5.3 V | 18 V | 125 °C | -40 °C | SPI | 12 mm | 80-HTQFP | 12 mm | AEC-Q100 |
