CDCE6214Q1TM Series

Ultra-low power clock generator supporting PCIe® gen 1-5 with active low output enable

Catalog

Ultra-low power clock generator supporting PCIe® gen 1-5 with active low output enable

Part	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Output	Input	Qualification	Mounting Type	Type	Frequency - Max	Multiplier	Divider	Differential Input	Differential Output	Package Length	Package Name	Package Width	PLL	Output Ratio	Input Ratio	Number of Circuits	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Grade
Texas Instruments CDCE6214LTWRGETQ1	105 °C	-40 °C	24-VFQFN Exposed Pad	HCSL LVCMOS LVDS	LVCMOS	AEC-Q100	Surface Mount Wettable Flank	Clock Generator	328.125 MHz	No	Yes	Yes	Yes	4 mm	24-VQFN	4 mm	Yes	5	2	1	3.465 V	1.71 V	Automotive

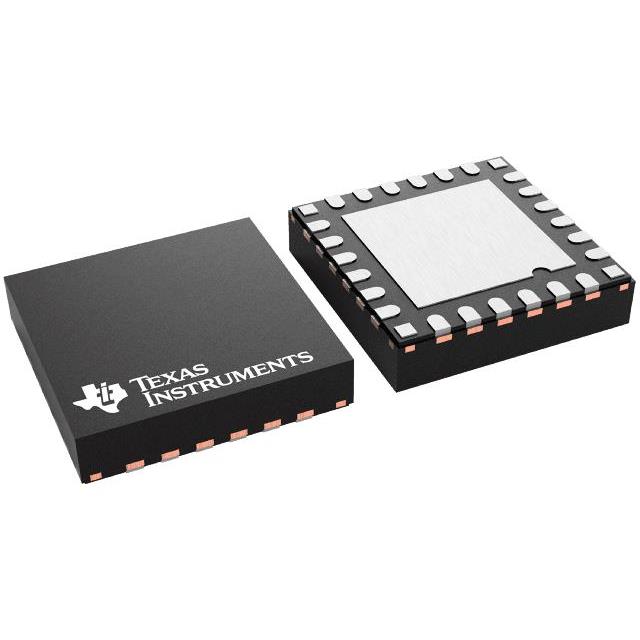

Texas Instruments CDCE6214LTWRGERQ1	105 °C	-40 °C	24-VFQFN Exposed Pad	HCSL LVCMOS LVDS	LVCMOS	AEC-Q100	Surface Mount Wettable Flank	Clock Generator	328.125 MHz	No	Yes	Yes	Yes	4 mm	24-VQFN	4 mm	Yes	5	2	1	3.465 V	1.71 V	Automotive

Catalog

Ultra-low power clock generator supporting PCIe® gen 1-5 with active low output enable

Description

The CDCE6214Q1TM is a 4-channel, ultra-low power, medium grade jitter, clock generator for automotive application that can generate five independent clock outputs selectable between various modes of drivers. The input source can be a single-ended or differential input clock source, or a crystal. The CDCE6214Q1TM features a frac-N PLL to synthesize unrelated base frequency from any input frequency. The CDCE6214Q1TM is a 4-channel, ultra-low power, medium grade jitter, clock generator for automotive application that can generate five independent clock outputs selectable between various modes of drivers. The input source can be a single-ended or differential input clock source, or a crystal. The CDCE6214Q1TM features a frac-N PLL to synthesize unrelated base frequency from any input frequency.
