TLK10031 Series

Single-channel XAUI/10GBASE-KR transceiver

Catalog

Single-channel XAUI/10GBASE-KR transceiver

Part	Package Name	Package Width	Package Length	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Type	Data Rate	Number of Drivers	Number of Receivers	Mounting Type	Package / Case
Texas Instruments TLK10031CTR	144-FCBGA	13 mm	13 mm	-40 °C	85 °C	1.89 V	1.71 V	Transceiver	10 Gbps	1	1	Surface Mount	144-BBGA FCBGA

Catalog

Single-channel XAUI/10GBASE-KR transceiver

Description

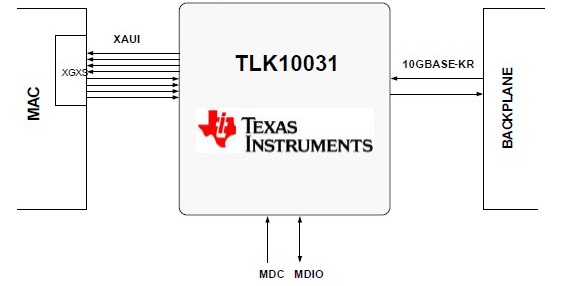

The TLK10031 is a single-channel multi-rate transceiver intended for use in high-speed bi-directional point-to-point data transmission systems. This device supports three primary modes. It can be used as a XAUI to 10GBASE-KR transceiver, as a general-purpose 8b/10b multi-rate 4:1, 2:1, or 1:1 serializer/deserializer, or can be used in 1G-KX mode. The TLK10031 is a single-channel multi-rate transceiver intended for use in high-speed bi-directional point-to-point data transmission systems. This device supports three primary modes. It can be used as a XAUI to 10GBASE-KR transceiver, as a general-purpose 8b/10b multi-rate 4:1, 2:1, or 1:1 serializer/deserializer, or can be used in 1G-KX mode.
