C3M0120100 Series
Manufacturer: Wolfspeed, Inc.
Beta
⌘K
SIC MOSFETS 1000V 120MOHM G3 SIC MOSFET TO-247-4
| Part | Vgs(th) (Max) | Power Dissipation (Max) | Vgs (Max) | Package / Case | Gate Charge (Max) | Drive Voltage (Max Rds On, Min Rds On) | Current - Continuous Drain (Id) (Tc) | Technology | Package Name | Mounting Type | Drain to Source Voltage (Vdss) | Operating Temperature (Min) | Operating Temperature (Max) | FET Type | Input Capacitance (Ciss) (Max) | Rds On (Max) | Package Leads | Vgs (Max) Negative | Vgs (Max) Positive |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Wolfspeed, Inc. | 3.5 V | 83 W | 15 V | TO-247-4 | 21.5 nC | 15 V | 22 A | SiCFET (Silicon Carbide) | TO-247-4L | Through Hole | 1000 V | -55 °C | 150 °C | N-Channel | 350 pF | 155 mOhm | |||

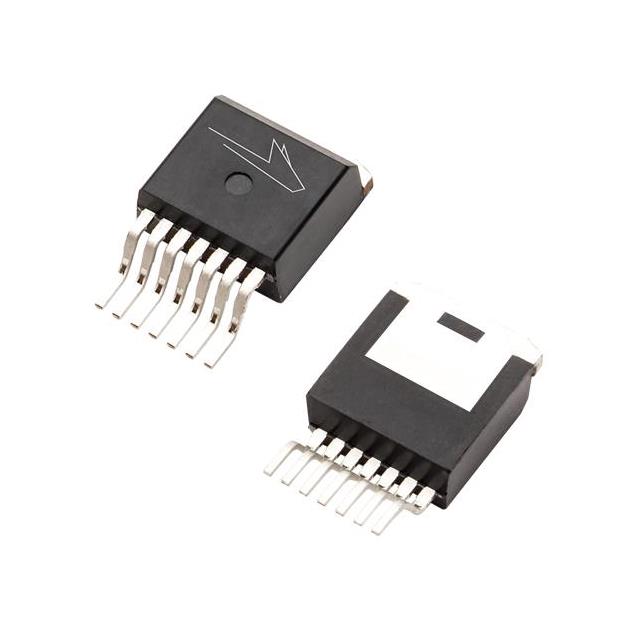

 Wolfspeed, Inc. | 3.5 V | 83 W | 21.5 nC | 15 V | 22 A | SiCFET (Silicon Carbide) | D2PAK D2PAK-7 | Surface Mount | 1000 V | -55 °C | 150 °C | N-Channel | 350 pF | 155 mOhm | 7 Leads | -4 V | 15 V |
